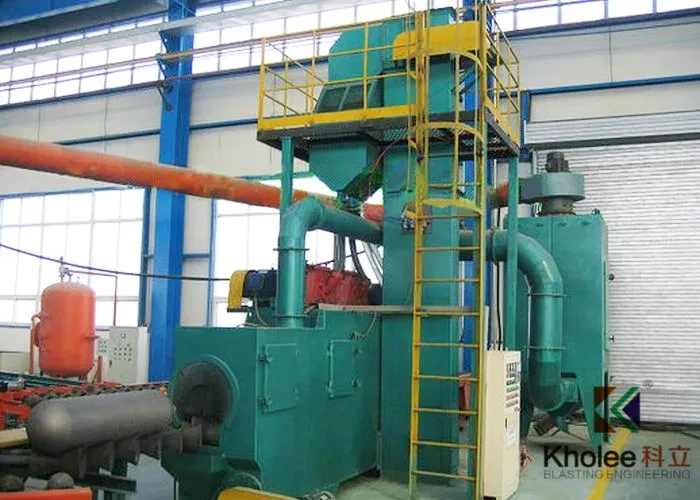

Steel Cylinder Shot Blasting Machine is comprised of
1) Shot Blasting Chamber
2) Shots Recycle System including screw conveyor, bucket elevator and air wash separator
3) Blasting Turbine

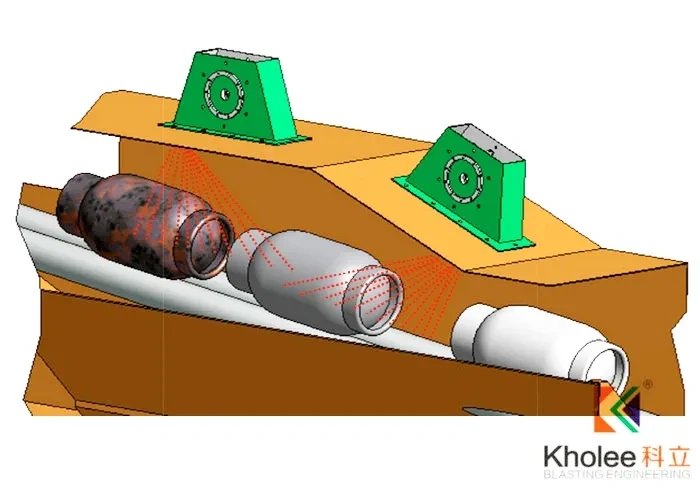

4) Steel Cylinder Moving and Rotating System
5) Dust Removing System including pulse jet dust collector and centrifugal air fan
6) Electrical Control System
◆ Specifications
| STEEL CYLINDER SHOT BLASTING MACHINE |
| Model | KLGP300-2 | KLGP400-2 | KLQG484-4 |
| Size of Steel Cylinder | 2.2kg,5kg,10kg,13kg,15kg,20kg 45kg |
| Productivity | 60~80 pcs/hr | 120~160 pcs/hr | 160~200 pcs/hr |
| Blasting Turbine | 7.5kw×2 | 15kw×2 | 11kw×4 |
| Shots Recycle System | 15 t/hr | 30 t/hr | 48 t/hr |

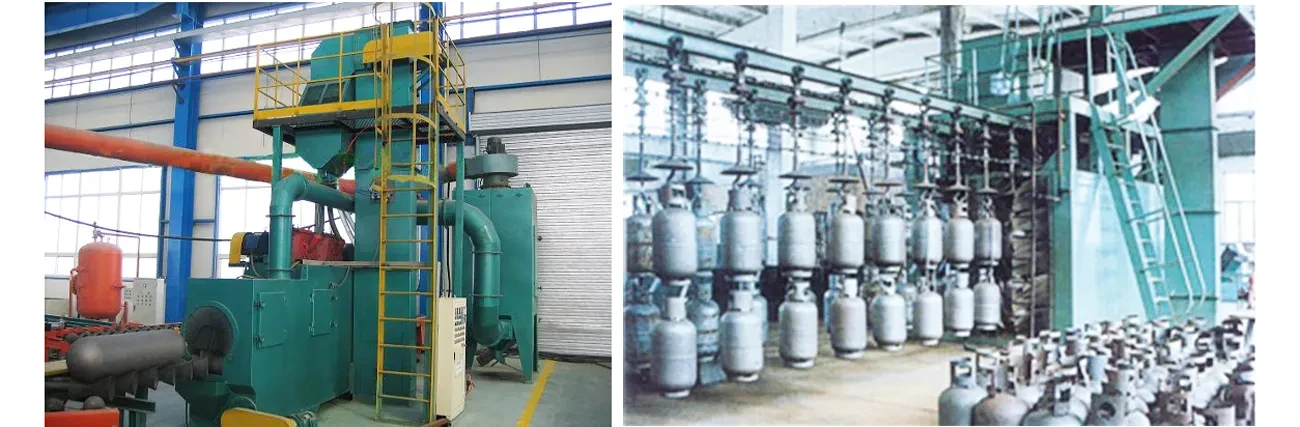

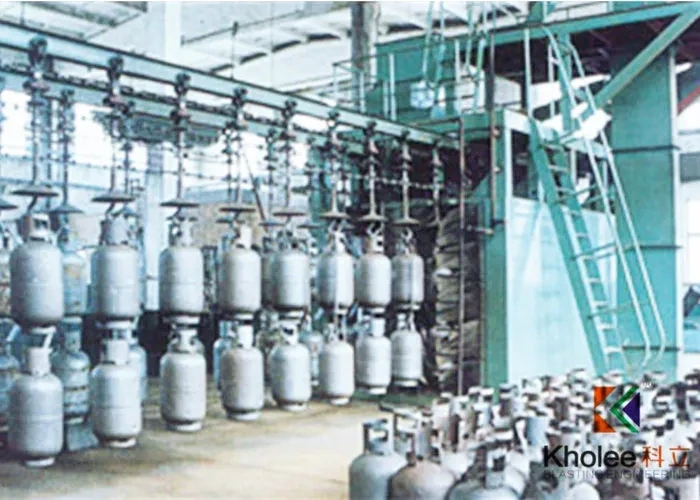

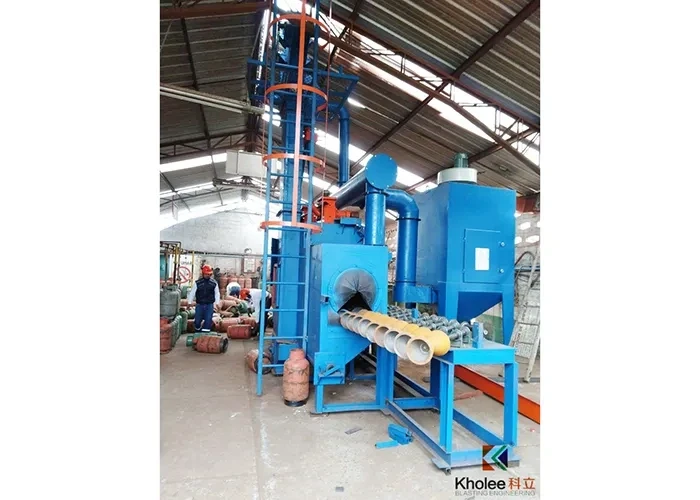

| Cylinder Transportation | Roller Conveyor | Overhead Conveyor |
| Dust Removing Air Volume | 9,000 m³/hr | 12,000 m³/hr | 18,000 m³/hr |
| Surface Quality after Blasting | Sa2.5~3.0 |
| Total Power | 28kw | 50kw | 75kw |
◆ Advantages
● Highly Efficient Cleaning: The LPG cylinder shot blasting machine quickly removes rust, oil, scale, and other impurities from the cylinder surface, significantly improving production efficiency and making it suitable for mass production.
● Uniform Shot Peening: The automated control system ensures uniform shot blasting, resulting in consistent cylinder surface quality and optimal cleaning performance.
● Enhanced Adhesion: Shot blasting creates a uniform surface roughness, effectively enhancing the adhesion of coatings and anti-corrosion materials, and extending cylinder lifespan.
● Environmentally Friendly and Energy-Saving: The abrasive material is recyclable, reducing resource waste, and the absence of chemical cleaning agents during the shot blasting process complies with environmental protection requirements.
● Automated Operation: The automated control system reduces manual operation, ensures a stable cleaning process, and improves work efficiency.
◆ Industry
◆ FAQ
What types of gas cylinders are suitable for LPG cylinder shot blasting machines?
LPG cylinder shot blasting machines are suitable for all types of liquefied petroleum gas (LPG) cylinders, especially metal cylinders such as steel and aluminum cylinders, and are suitable for large-scale cleaning production.
How to improve the working efficiency of an LPG cylinder shot blasting machine?
Methods to improve efficiency include properly adjusting the spray angle and abrasive particle size, regularly inspecting the shot blasting system to ensure uniform spraying and consistent cleaning results, and maintaining the equipment in normal operating condition.
What safety measures are required when using an LPG cylinder shot blasting machine?
Appropriate personal protective equipment, such as safety glasses, earmuffs, and dust masks, should be worn during operation to avoid shot splashing. In addition, ensure proper equipment maintenance, check the electrical system, spraying device, and abrasive quality to ensure safe and stable operation of the equipment.
