Shot blasting is one key technology of surface finishing in the industries of shipbuilding, steel structure, pressure vessel, pipelines, heavy engineering machinery etc. The productivity efficiency of shot blasting equipment directly affects producing period; The coating quality directly affects the product service life.

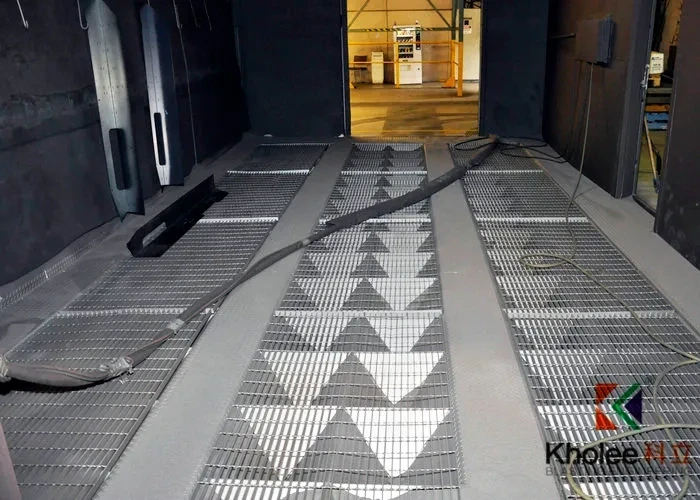

This blasting booth adopts waffle floor to recovery abrasives. It uses high pressure air as power to reclaim abrasive from blasting booth, then delivery abrasives into separating system through pipes. All separating, abrasive recycle and delivery adopt pneumatic delivery. it doesn't need to use bucket elevator, air wash type separator etc.. A complete air recovery blasting room is made of blasting working booth, shot blasting system, waffle floor, recovery separating system, dust removing system, electrical control system, protective wearing for workers, trolley system and so on.
◆ Performance
- It adopts large power air fan to provide air power for blasting room. The air power will reclaim the mixture of abrasives and dust through waffle floor. Because the air flow goes top-down, the dust will be descent down to the floor. Thus it can provide good working conditions and visibility for workers.
- It doesn't need dig pitch or dig shallow pitch and can reduce construction task, thus it can reduce invest amount. The frame of blasting room adopts steel structure; the outer of room adopts color steel plates; the sandwich adopts special quieter materials. It can reduce noise and control the noise level under 80db(A).
- The compressed air pressure is 0.8Mpa; the de-rusting grade is Sa2.5~3; the dust emission density is ≤30mg/m3; the illuminance is ≥300Lx.
- It adopts large volume sand/grit blasting machine, auto abrasive input system and can improve the efficiency by 40%~45%.
- The blasting nozzle quantity is determined by the blasting area per hour provided by customers.

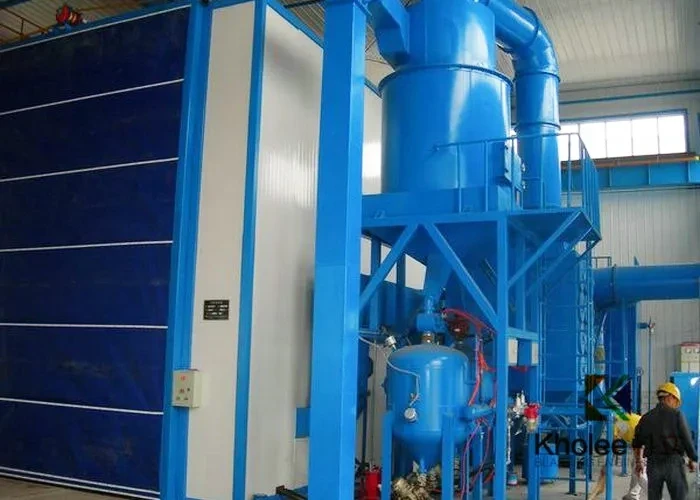

- It adopts advanced pulse jet cartridge filter dust collector and has the advantages of high efficiency of dust removing, long life service and dust emission density less than 30mg/m3.
- It adopts complete sets of blasting protective wearing.
-The disadvantage of waffle floor type blasting booth is that it has large electrical power consumption.
◆ Specifications
| Electrical Power Voltage/Frequency | Motor | 380V~415V/50Hz/3Ph |
| Control | 220V/50Hz |
| Size of Blasting Jobs | Max Size | 6,000×3,000×2,000mm |
| Max Weight | 10 tons |
| Blasting Room | Door Open Size | 4,000×3,500mm |
| Room Size L × W × H | 9,000×5,000×4,000mm |
| Blasting Productivity | Portable Blasting Machine | KLSC-600-1R |
| Blasting Pot Size | Φ600×1400mm, 0.27m3 |
| Working Time / Day | 8 hr.s |
| Blasting Nozzle/ Φ10mm | 2 units |
| Blasting Area per day | 15~35m2/hr×2×8hr.s=240~560m2 |
| Surface Quality After Blasting | Grade | Sa 2.5 |
| Roughness | 45µm～75µm |
| Steel Shots/Grits | Size | 0.6mm~1.0mm |
| Initial Input | 5,000~10,000 kg |
| Provided by the client |
| Abrasive Recycle Type | - Auto Waffle Floor Recovery System: 500×500mm, 3 roads |
| - Capacity: 5~10tons/hr |
| - Recovery Area: about 70m2 |
| - Gratings to support blasting man |
| - Screen to filter abrasive |
Dust Removing System I for Blasting Room | Air volume | 22,803m3/hr |
| Power | 22kw |
| Pulse Jet Dust Collector | KL-DC4-32 |
| Filter Cartridge material | Nano Film Fiber |
| Filter Cartridge Size | Φ325×660mm, 21m2/pc |
| Filter Cartridge Qty | 32 pcs |
| Dust Emission Density | ≤30mg/m3 |
Dust Removing System II for Abrasive Recycle | Air volume | 6032~7185m3/hr |
| Power | 22kw |
| Pulse Jet Dust Collector | KL-DC3-12H |
| Filter Cartridge | High Pressure |
| Filter Size | Φ325×1000mm, 16m2/pc |
| Filter Cartridge Qty | 12 pcs |
| Dust Emission Density | ≤30mg/m3 |
| Non-Power Trolley | Table Size | 2500×4000mm |
| Height | 630mm |
| Loading Capacity | 5 ~ 10 tons |
| Noise Level | ≤85dB |
| Illuminance | ≥300Lux |
| Total Power | About 45kw |

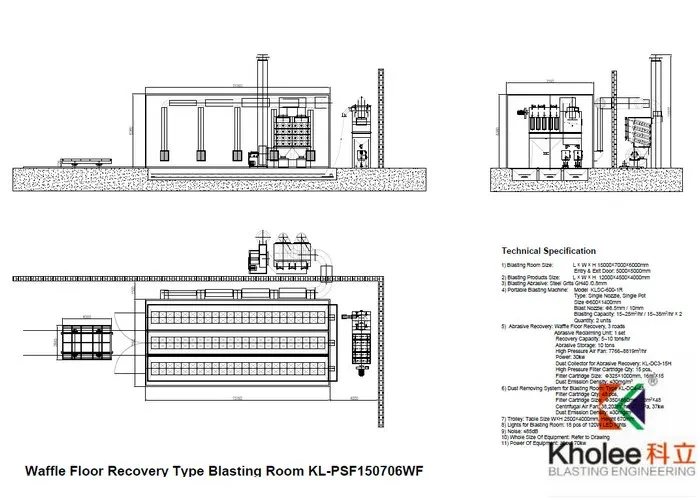

| Size of Equipment | Refer to Drawing |
◆ Advantages
● Highly Efficient Cleaning: The professionally designed sandblasting booth can clean workpiece surfaces evenly and quickly, making it widely applicable in mass production and large workpiece processing with high efficiency.
● Abrasive Recovery: Equipped with a high-efficiency abrasive recovery system, the abrasive can be reused multiple times, reducing costs and resource waste, and meeting environmental protection requirements.
● Environmentally Friendly Design: A good ventilation and filtration system significantly reduces dust pollution in the working environment, improving safety and comfort.
● High Adaptability: It can handle workpieces of various sizes and shapes, meeting different production needs, and is particularly suitable for sandblasting large or complex workpieces.
● High Stability: The automated operating system ensures consistent surface treatment results for each workpiece, reducing manual intervention and ensuring high-quality sandblasting effects.
◆ Industry
◆ FAQ
What types of workpieces are abrasive blast rooms suitable for?
Abrasive blast rooms are suitable for workpieces of various sizes and shapes, especially large workpieces for mass production, such as automotive parts, shipbuilding components, mechanical parts, and steel structural parts. They are widely used for cleaning the surfaces of metals, plastics, glass, and other materials.
How to improve the working efficiency of abrasive blast rooms?
The key to improving efficiency lies in the proper selection of blasting materials, adjustment of jet air pressure, and blasting angle. Optimizing the recycling of abrasive and keeping it clean can reduce downtime. Regularly check the filtration system and ventilation devices to ensure efficient operation.
What safety measures are required when using abrasive blast rooms?
Safety glasses, earmuffs, gloves, and dust masks must be worn during operation to avoid inhaling dust and abrasive splashes. Regularly check the electrical system and ventilation equipment to ensure the airtightness and safety of the blasting room and prevent leaks or fires.
