The Air-Cooled Dehumidifiers are used for drying air of up to 95% relative humidity (RH) with temperatures from +15ºC to +40ºC. It is widely used in the area of Southeast Asia, South America with tropic and sub-tropic climate.
The applications are numerous and wide spread. Below are some examples:
- Surface treatment during internal blasting and painting of tanks
- Shipping industry, both for permanent and temporary applications
- Controlling humidity levels in production processes
- Protection of equipment sensitive to corrosion
- Climatic improvements in damp areas

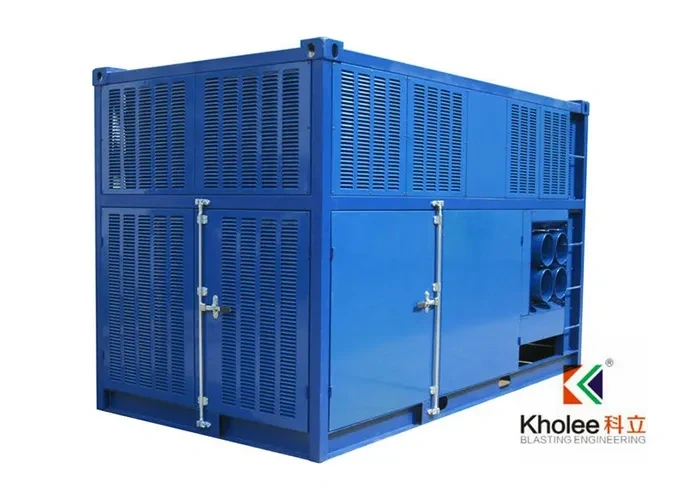

Air Cooled Dehumidifier is delivered as a complete unit with fans, filters, condenser, evaporator, compressor and controls. The dehumidifier is ready for site installation and connection to standard-size ducting. Each dehumidifier will be custom designed according to the local conditions and the needs of the customer
◆ Specifications
| AIR COOLED DEHUMIDIFIER FOR BLASTING PAINTING HALL |
| Model | KL-LFZ6000 | KL-LFZ9000 | KL-LFZ12000 | KL-LFZ18000 |
| Process Airflow (m3/hr) | 6000 | 9000 | 12000 | 18000 |
| Compressor Power (KW) | 38 | 45 | 60 | 90 |
| Process Air Fan (KW) | 7.5 | 11 | 15 | 22 |
| Reheating Power (KW) | 27 | 36 | 45 | 80 |
| Outlet connection (MM) | Φ250×2 | Φ250×3 | Φ250×4 | Φ250×6 |
| Total Power (KW) | 76.9 | 100 | 131 | 214 |
| Equipment Size (MM) | 3400×2000×2450 | 3600×2050×2500 | 3800×2100×2550 | 5200×2200×2800 |
| Weight (T) | 3.2 | 3.5 | 3.8 | 4.5 |
| Machine Structure | Movable Containerized |
| Temperature Control | High sensitive temperature sensor + PLC control + Touch Screen Display |
| Condenser | Copper Tube + Aluminium Fins with galvanized casing |
| Evaporator | Copper Tube + Aluminium Fins with galvanized casing |
| Or Copper Tube + Copper Fins with stainless steel casing |
| Air Intake Condition | Temperature: 15~40°C， RH≤95% |
| Air Discharge Condition | Temperature: 25±3°C， RH≤45% |
| Air Discharge Pressure | ≥ 1200~2500Pa |
| Electrical Control | 100% refrigeration + 100% Heating |
◆ Note (All Models)
1. Power supply: 3-phase plus earth 380V/ 415V / 50 Hz
2. Refrigerant: R22, OTHER REFRIGERANT FOR OPTIONAL SUCH AS R134A
3. Cooling step control: 25%~50%~75%~100%
4. Cooling Media: Air
5. Discharge condition: 25 ± 3 °C/RH below 45%
6. We have the policy to improve our equipment continuously & shall reserve the rights to change the dimensions and specs without prior notice.
◆ Specifications

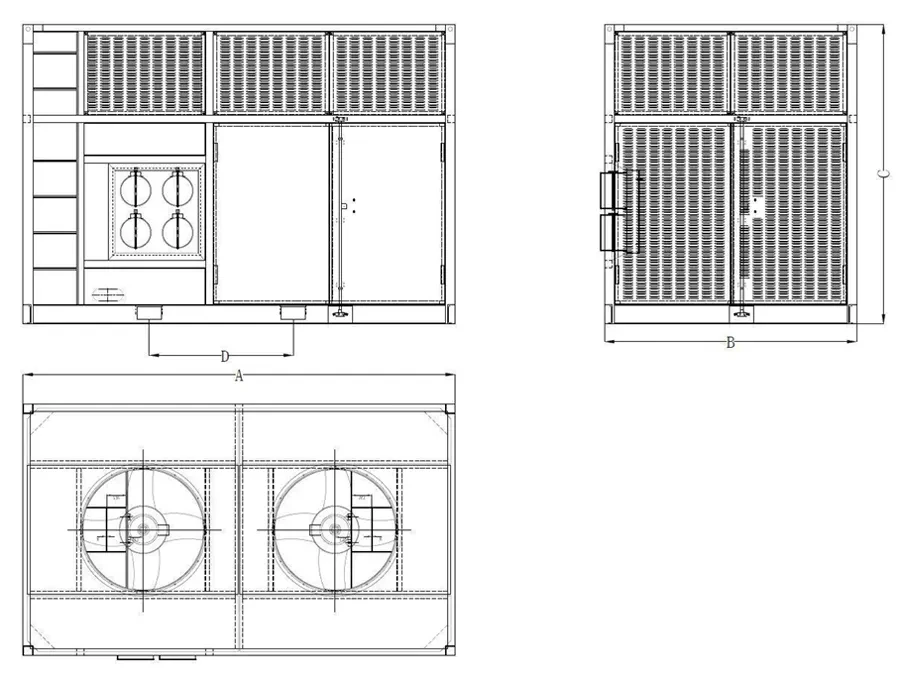

| DIMENSION OF AIR COOLED DEHUMIDIFIER |
| Model | KL-LFZ6000 | KL-LFZ9000 | KL-LFZ12000 | KL-LFZ18000 |
| LENGTH A (MM) | 3400 | 3600 | 3800 | 5200 |
| WIDTH B (MM) | 2000 | 2050 | 2100 | 2200 |
| HEIGHT C (MM) | 2450 | 2500 | 2550 | 2800 |
| FORKLIFT D (MM) | 1400 | 1400 | 1400 | 1400 |
◆ Advantages
● Highly Efficient Dehumidifier: Air-cooled dehumidifiers rapidly reduce indoor humidity, preventing mold and corrosion caused by moisture, making them suitable for humidity control in damp environments.
● Energy-Saving and Environmentally Friendly: This equipment utilizes advanced cooling technology, operating with low energy consumption, reducing energy waste, and is environmentally friendly and efficient.
● Easy to Operate: The equipment features a simple design and is easy to operate. Users can freely adjust humidity settings as needed to ensure a consistently comfortable environment.
● Widely Applicable: Air-cooled dehumidifiers are suitable for various environments, such as homes, offices, basements, and warehouses, meeting the dehumidification needs of different locations.
● Low-Noise Design: The equipment operates smoothly with low noise, making it suitable for use in residential and working environments without interfering with daily activities.
◆ Industry
◆ FAQ
Where are air-cooled dehumidifiers suitable?
Air-cooled dehumidifiers are suitable for places with high humidity, such as basements, warehouses, home bathrooms, kitchens, offices, and humid climates, effectively removing excess moisture.
How to improve the efficiency of an air-cooled dehumidifier?
To improve efficiency, clean the air filter regularly and ensure good airflow. Maintain a proper working environment for the equipment, avoiding excessive accumulation of dust or debris, and regularly check and maintain the condenser system.
Are air-cooled dehumidifiers energy-efficient?
Yes, air-cooled dehumidifiers use energy-saving cooling technology, enabling efficient operation and minimizing power consumption. They are more energy-efficient than traditional dehumidifiers during use, and long-term use helps reduce energy costs.
