The conventional method of recovering spent abrasives is both labour intensive and time consuming, while the fastest and most cost-effective method of cleaning up spent abrasives is by vacuuming recovery.

   ◆ Working Principle

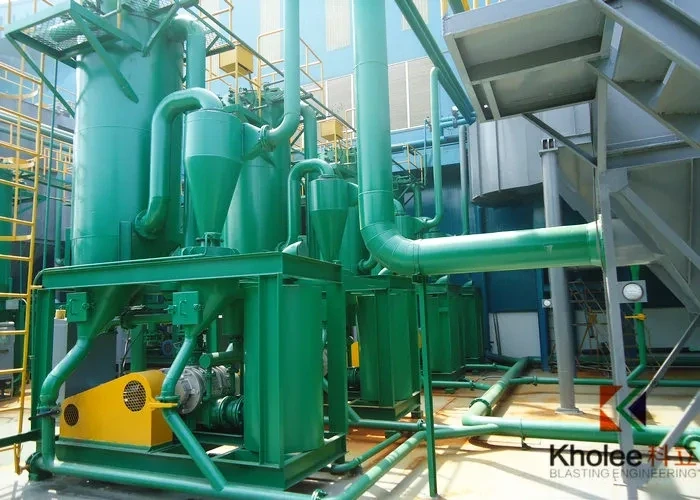

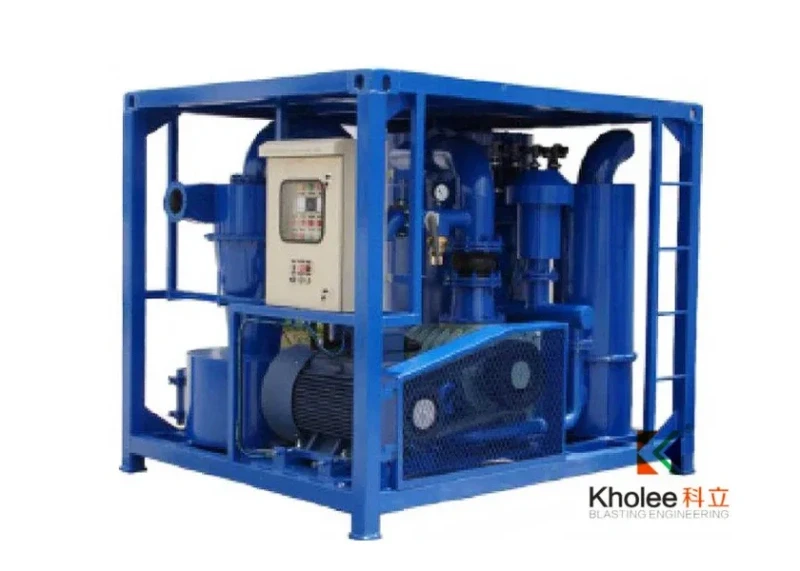

Vacuum Recovery system is designed to recover spent recyclable abrasives from a blasting area into a silo for subsequent return to the blast cleaning equipment or, in the case of expendable abrasives, for disposal into a waste hopper. After depositing the abrasive into the silo, the vacuum flow containing air and dust continues on to the suction unit, where the dust particles in this stream are removed by high performance filter cartridges prior to exhausting air to atmosphere.

  ◆ Standard Safety Features
- System automatically shuts-off to prevent damage to the vacuum producer when the suction hose is choked up with abrasives and when the electric motor’s current rises above a certain pre-determined value.
- Cyclone is equipped with full-tank sensor to shut down the vacuum machine when it is full and prevent overloading of abrasives in the dust collector. Silo full-tank sensor available as an option.
- An emergency ‘STOP’ button, when depressed, will automatically cut off all electrical supply.
Application
To recovery Steel Shots, grits and garnet after blasting and widely used in the industry of shipbuilding, ship repair, big tank internal blasting etc.

◆ Specifications

◆ Note:

- Kholee Blast also designs and manufactures non-standard vacuum recovery machines according to clients’ requirements and work-pieces size.

- We have the policy to improve our equipment continuously & shall reserve the rights to change the dimensions and specs without prior notice.

◆ Advantages
● Highly Efficient Recycling: It efficiently recycles and cleans abrasives generated during sandblasting, shot peening, and other processes, reducing resource waste and improving production efficiency.
● Reduced Costs: By recycling and reusing abrasives, it lowers abrasive procurement costs, helping companies save significant resources.
● Environmentally Friendly and Clean: The recycled abrasives are cleaned and filtered, effectively reducing environmental pollution and improving workplace cleanliness.
● Simple Operation: The equipment features a simple design and is easy to operate, allowing workers to quickly learn and ensure a highly efficient and stable production process.
● Improved Working Environment: The recycling system cleans residual abrasives and dust from the work area, reducing airborne pollutants and ensuring a clean and safe working environment.

◆ Industry

To recovery steel shots, grits and garnet after blasting and widely used in the industry of shipbuilding, ship repair, big tank internal blasting etc.

◆ FAQ

What types of abrasives can an abrasive vacuum recovery machine handle?
An abrasive vacuum recovery machine is suitable for a variety of abrasives, such as steel shot, steel grit, aluminum grit, and ceramic particles. It is suitable for abrasive recovery in sandblasting, shot peening, and other surface treatment processes.


How to improve the recovery efficiency of an abrasive vacuum recovery machine?
Methods to improve recovery efficiency include regularly cleaning the filtration system, ensuring the vacuum pump and pipelines are unobstructed, maintaining good equipment operating condition, and ensuring the cleanliness and quality of the abrasive.


What safety precautions should be taken when using an abrasive vacuum recovery machine?
During operation, wear appropriate protective eyewear, earmuffs, and a dust mask to avoid inhaling fine dust. Regularly inspect the equipment's electrical system and recovery pipelines to ensure safe and reliable operation.
