The air-cool eddehumidifiers are used for drying air of up to 95% relative humidity (RH) with temperatures from +15ºc to +50ºc. It is widely used in the area of Middle East Region with tropic desert climate.
The applications are numerous and wide spread. Below are some examples:
- Surface treatment during internal blasting and painting of tanks
- Shipping industry, both for permanent and temporary applications
- Controlling humidity levels in production processes
- Protection of equipment sensitive to corrosion
- Climatic improvements in damp areas

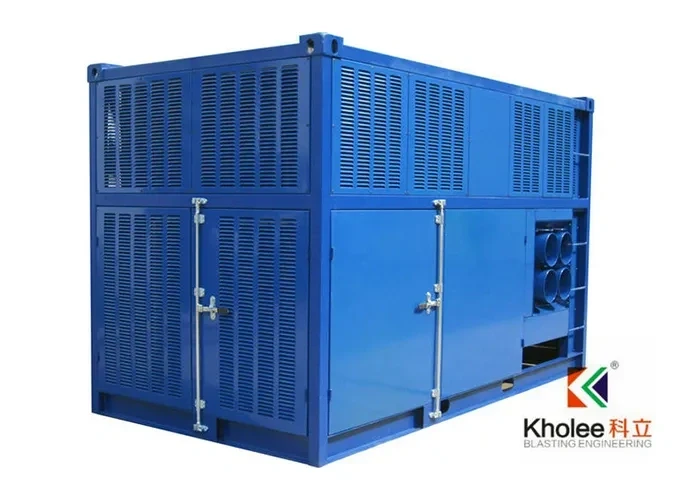

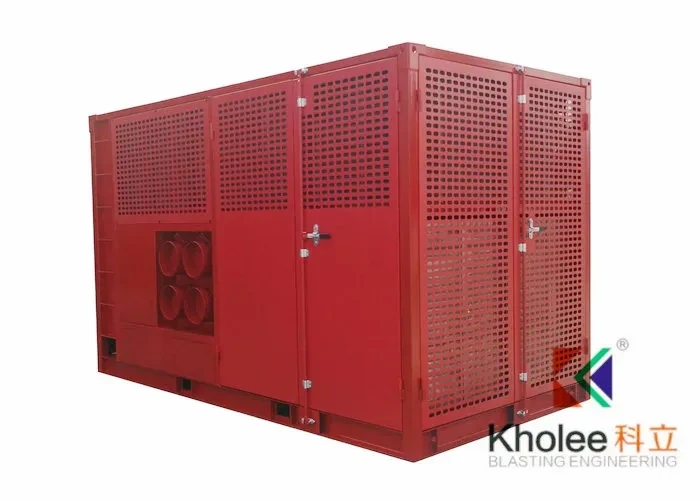

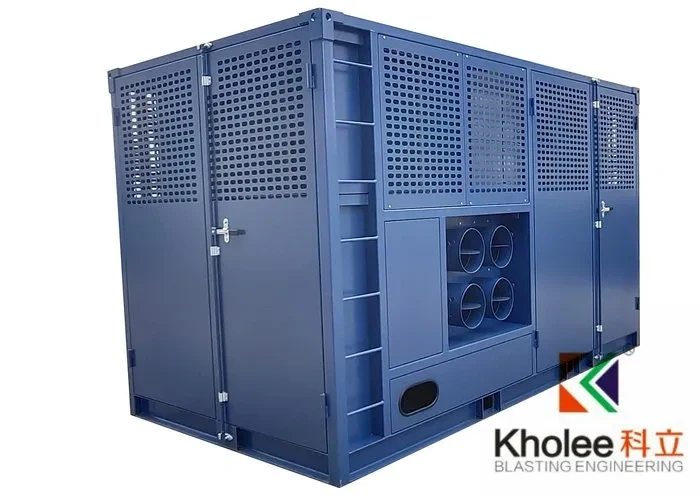

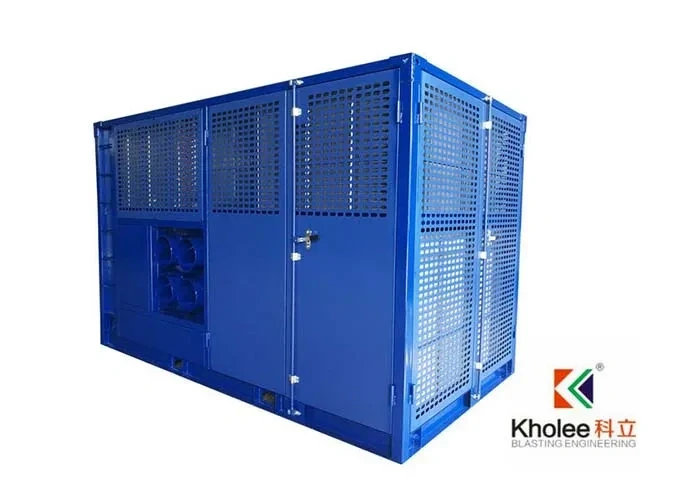

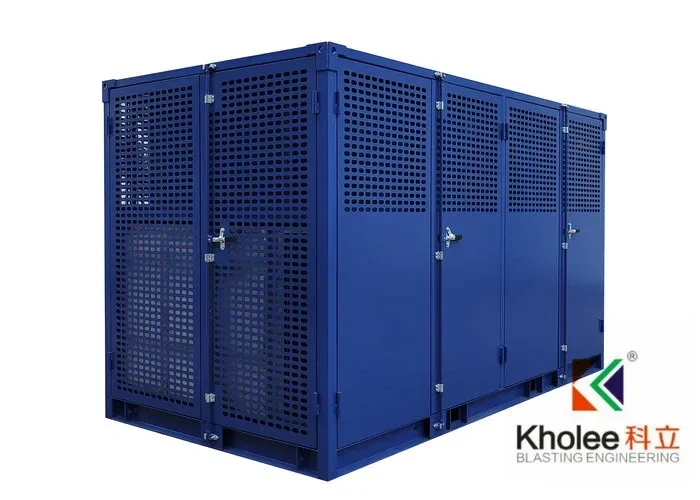

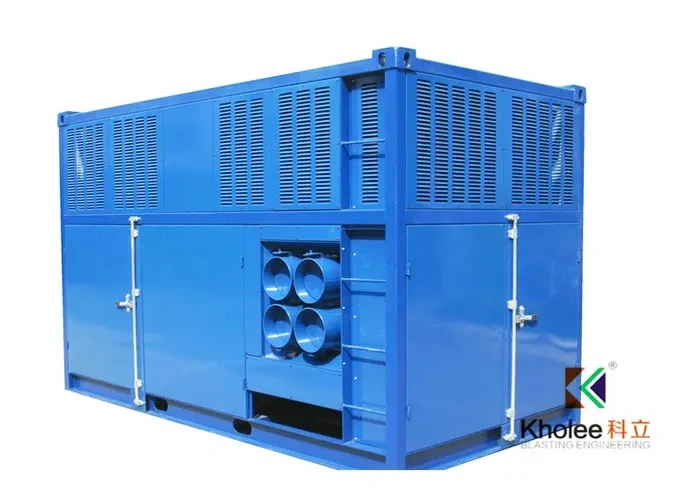

Air cooled dehumidifier is delivered as a complete unit with fans, filters, condenser, evaporator, compressor and controls. The dehumidifier is ready for site installation and connection to standard-size ducting. Each dehumidifier will be custom designed according to the local conditions and the needs of the customer
◆ Specifications
| ECO-FRIENDLY AIR COOLED DEHUMIDIFIER FOR MIDDLE EAST |
| Model | KL-LFZ6000EF-E | KL-LFZ9000EF-E | KL-LFZ12000EF-E | KL-LFZ18000EF-E | KL-LFZ24000EF-E |
| Process Airflow (m3/hr) | 6000 | 9000 | 12000 | 18000 | 24000 |
| Compressor Power (KW) | 60/45 | 80/60 | 100/75 | 140/105 | 100/75×2 |
| Process Air Fan (KW) | 7.5 | 11 | 15 | 22 | 30 |
| Reheating Power (KW) | 27 | 36 | 54 | 72 | 108 |
| Outlet Connection (MM) | φ250×2 | φ250×3 | φ250×4 | φ250×6 | φ300×6 |
| Total Power (KW) | 87 | 134 | 157 | 225 | 320 |
| Equipment Size (MM) | 3800×2100
×2450 | 4200×2100
×2500 | 4500×2100
×2500 | 5600×2200
×3200 | 5600×2800
×3200 |
| Weight (T) | 3.2 | 3.5 | 4.2 | 5.5 | 6 .0 |
| Machine Structure | Movable Containerized |
| Temperature Control | High sensitive temperature sensor + PLC control + Touch Screen Display |
| Condenser | Copper Tube + Aluminium Fins with galvanized casing |
| Evaporator | Copper Tube + Aluminium Fins with galvanized casing
Or Copper Tube + Copper Fins with stainless steel casing |
| Air Intake Condition | Temperature: 15~40°C， RH≤95% |
| Air Discharge Condition | Temperature: 25±3°C， RH≤45% |
| Air Discharge Pressure | ≥ 1200~2500Pa |
| Electrical Control | 100% refrigeration + 100% Heating |
◆ Note ( All Models )
1. Power supply:3-phase plus earth 380V/415V/50HZ
2. Refrigerant: R134A, Eco-Friendly to Ozonosphere
3. Cooling step control:25%~50%~75%~100%
4. Cooling media:Air
5. Discharge condition:25±3°c/RH below 45%
6. We have the policy to improve our equipment continuously & shall reserve the rights to change the Dimensions and specs without prior notice

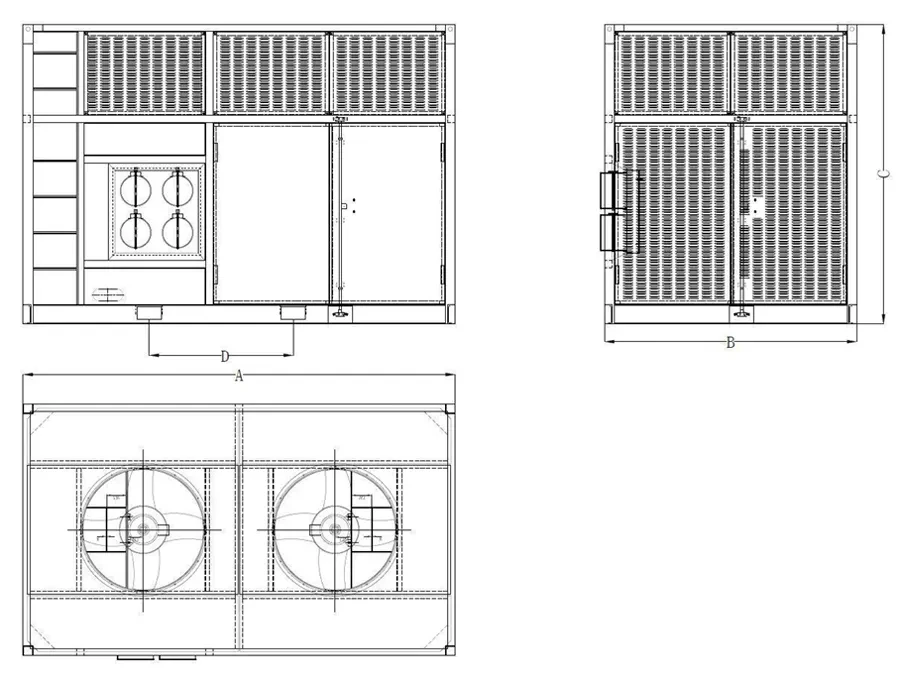

| DIMENSION OF AIR COOLED DEHUMIDIFIER |
| Model | KL-LFZ6000EF-E | KL-LFZ9000EF-E | KL-LFZ12000EF-E | KL-LFZ18000EF-E | KL-LFZ24000EF- |
| Length A (MM) | 3800 | 4200 | 4500 | 5600 | 5600 |
| Width B (MM) | 2100 | 2100 | 2100 | 2100 | 2800 |
| Height C (MM) | 2450 | 2500 | 2500 | 3200 | 3200 |
| Forkliftd (MM) | 1400 | 1400 | 1400 | 1400 | 1400 |
◆ Advantages
● Exceptionally Efficient Dehumidification: Our air-cooled dehumidifiers rapidly reduce humidity levels while delivering 100% fresh air. This effectively prevents moisture-induced corrosion, making them ideal for humidity control in demanding, damp environments.
● Energy-Saving and Environmentally Responsible: The unit adopts advanced cooling technology for low-energy operation. It uses R134a refrigerant, which is both environmentally friendly and highly efficient.
● User-Friendly Operation: Designed for simplicity, the equipment is easy to operate. Users can effortlessly adjust Temp & RH settings to maintain a consistently comfortable and controlled environment.
● Critical Equipment for Specialized Coating Applications: Air-cooled dehumidifiers are widely recognized as essential in shipbuilding, ship repair, marine drydocks, and oil & gas tank blasting and painting operations.

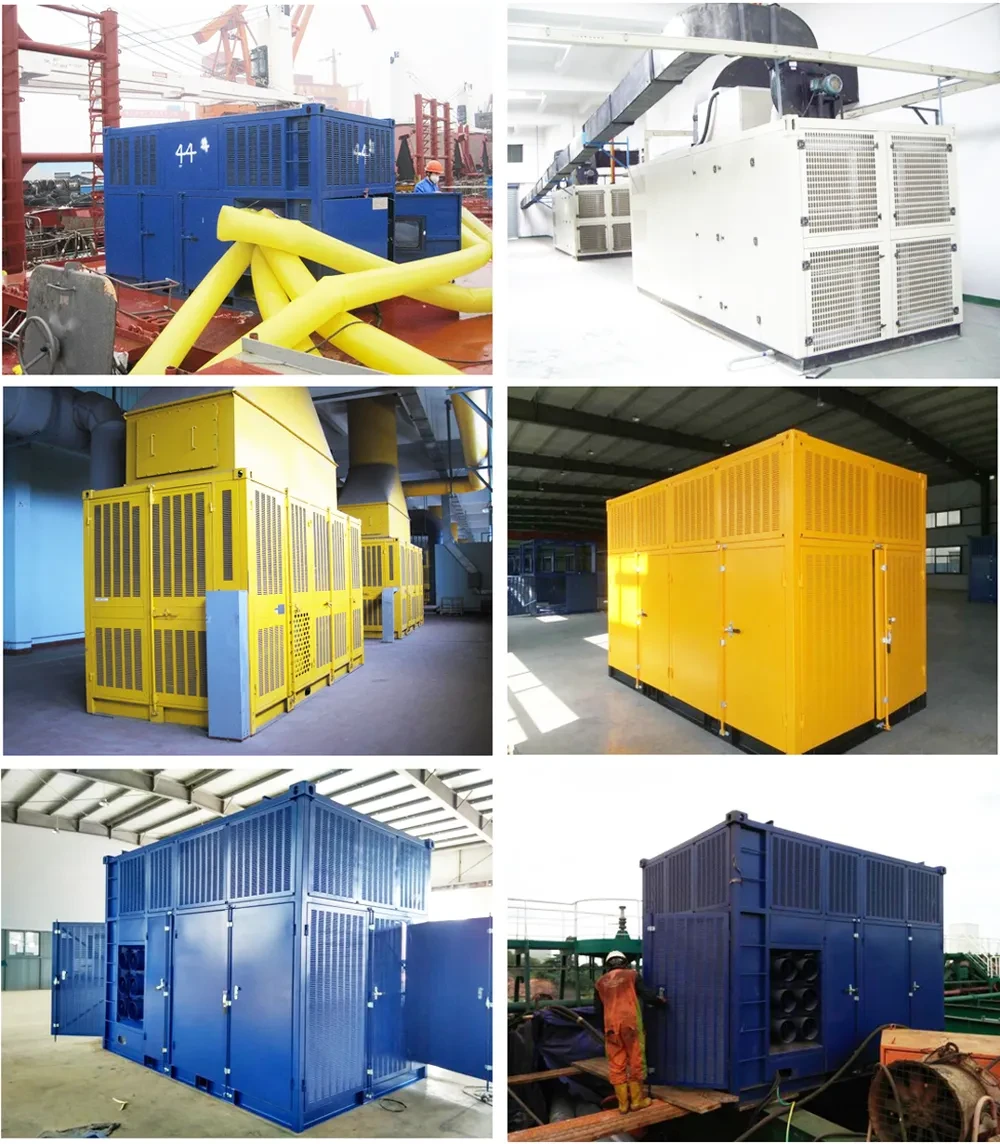

◆ Industry
◆ FAQ
Q: Where are air-cooled dehumidifiers suitable?
A: The air cooled dehumidifier is widely used in the area of Southeast Asia, South America with equatorial and tropical climate conditions
Q: Which industries are air cooled dehumidifiers used for?
A: The applications are numerous and wide spread. Below are some examples:
- Shipbuilding and Ship Repair Yards
- Oil & Gas Fabrication
- Oil & Gas offshore maintenance
- Large Blasting and Painting Rooms
- Ship drydocks
- Large maintenance projects
- Bridge Blasting projects
- Projects requiring a fast blast & painting turnaround, power stations, refineries
- Surface treatment during internal blasting and painting of tanks
- Controlling humidity levels in production processes
- Protection of equipment sensitive to corrosion
- Climatic improvements in damp areas
