The air-cooled dehumidifiers are used for drying air of up to 95% relative humidity (RH) with temperatures from +15ºc to +40ºc. It is widely used in the area of southeast asia, south america with tropic and subtropic climate.
The applications are numerous and wide spread. Below are some examples:
- surface treatment during internal blasting and painting of tanks
- shipping industry, both for permanent and temporary applications
- controlling humidity levels in production processes
- protection of equipment sensitive to corrosion
- climatic improvements in damp areas
Air Cooled Dehumidifier is delivered as a complete unit with fans, filters, condenser, evaporator, compressor and controls. The dehumidifier is ready for site installation and connection to standard-size ducting. Each dehumidifier will be custom designed according to the local conditions and the needs of the customer.
◆ Specifications
| Model | KL-LFZ12000 Air Cooled Dehumidifer |
| Airflow Capacity | 12000CMH |
| Cooling Media | Air Cool |
| Working Method | 100% Refrigeration / 100% Consendation / 100% Heating |
| Refrigerant | R22 FREON |
| Inlet Air Condition | Temp 20~40°C / RH ≤95% upto 100% |
| Outlet Air Condition | Temp 25°C ±3/ RH ≤45% |
| Dew Point | 9°C~13°C |
| Evaporator | Copper Tube + Copper Fins with Stainless Steel Casing
Or Copper Tube + Hydraulic Aluminium Fins with Stainless Steel Casing |
| Condenser | Copper Tube + Copper Fins with Stainless Steel Casing
Or Copper Tube + Hydraulic Aluminium Fins with Stainless Steel Casing |
| Electrical Control | Touch Screen + PLC Control
Manual + Auto Control
Protection of electrical linkage, phase default, high and low Pressure, overload etc
Self-diagnosis
IP55 Enclosure
Power Supply 380~440V/50~60 Hz / 3Ph |
| Compressor | 60KW / 80HP |
| Condensing Fan | 5.5KW × 2 |
| Main Air Fan | 15KW |
| Electrical Heater | 45KW |
| Total Power | 131kw |

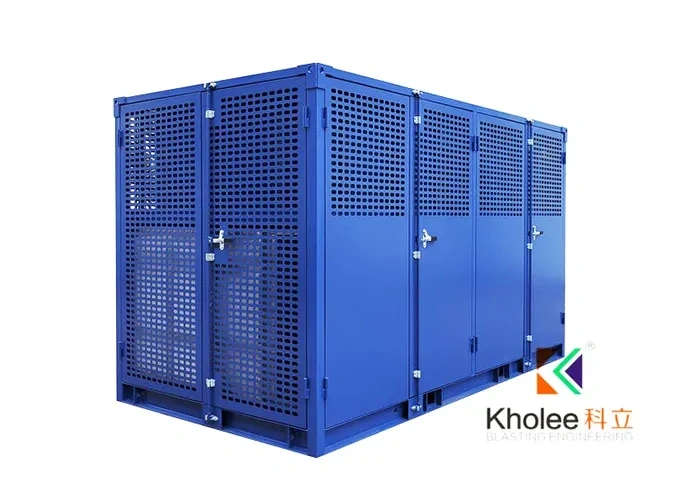

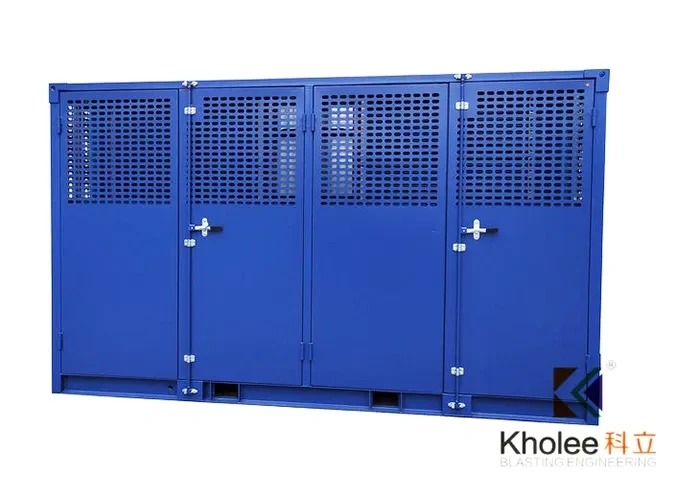

| Machine Structure | Containerized, Lifting Eye + Forklift Pocket |

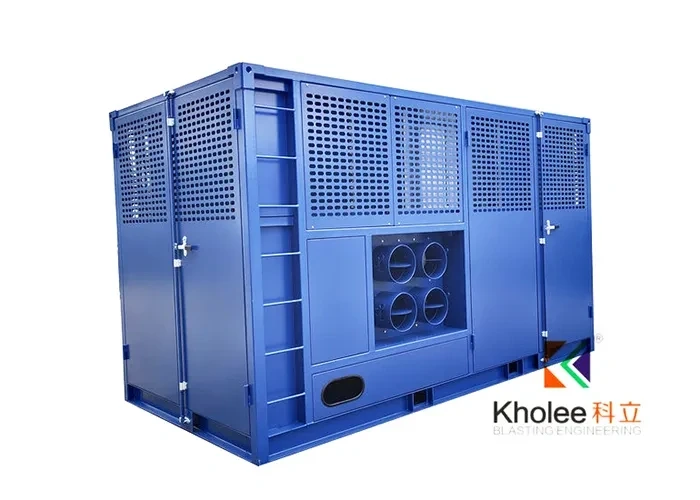

| Air Outlet Size | Φ280MM × 4 |
| Equipment Size | 3850× 2100× 2450MM |
| Equipment Weight | Approx 3800 KGS |
◆ Advantages
● Exceptionally Efficient Dehumidification: Our air-cooled dehumidifiers rapidly reduce humidity levels while delivering 100% fresh air. This effectively prevents moisture-induced corrosion, making them ideal for humidity control in demanding, damp environments.
● Refrigerant R22 Freon, high refrigerating capacity and low purchase cost.
● User-Friendly Operation: Designed for simplicity, the equipment is easy to operate. Users can effortlessly adjust Temp & RH settings to maintain a consistently comfortable and controlled environment.
● Critical Equipment for Specialized Coating Applications: Air-cooled dehumidifiers are widely recognized as essential in shipbuilding, ship repair, marine drydocks, and oil & gas tank blasting and painting operations.
◆ Industry
◆ FAQ
Q: Where are air-cooled dehumidifiers suitable?
A: The air cooled dehumidifier is widely used in the area of Southeast Asia, South America with equatorial and tropical climate conditions
Q: Which industries are air cooled dehumidifiers used for?
A: The applications are numerous and wide spread. Below are some examples:
- Shipbuilding and Ship Repair Yards
- Oil & Gas Fabrication
- Oil & Gas offshore maintenance
- Large Blasting and Painting Rooms
- Ship drydocks
- Large maintenance projects
- Bridge Blasting projects
- Projects requiring a fast blast & painting turnaround, power stations, refineries
- Surface treatment during internal blasting and painting of tanks
- Controlling humidity levels in production processes
- Protection of equipment sensitive to corrosion
- Climatic improvements in damp areas
