The applications are numerous and wide spread. Below are some examples:
- surface treatment during internal blasting and painting of tanks
- shipping industry, both for permanent and temporary applications
- controlling humidity levels in production processes
- protection of equipment sensitive to corrosion
- climatic improvements in damp areas

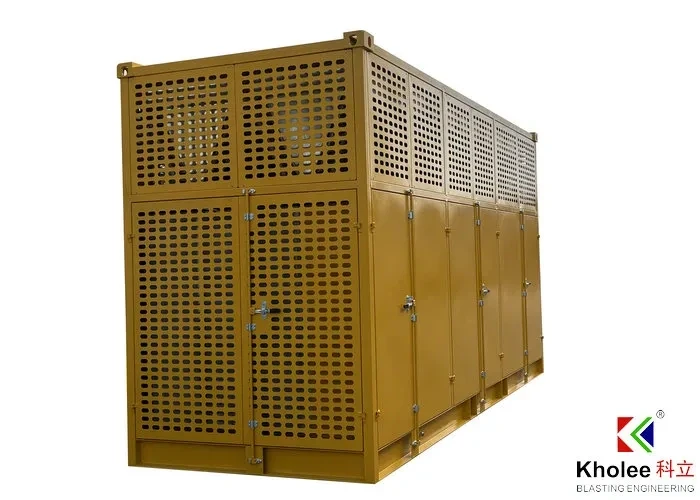

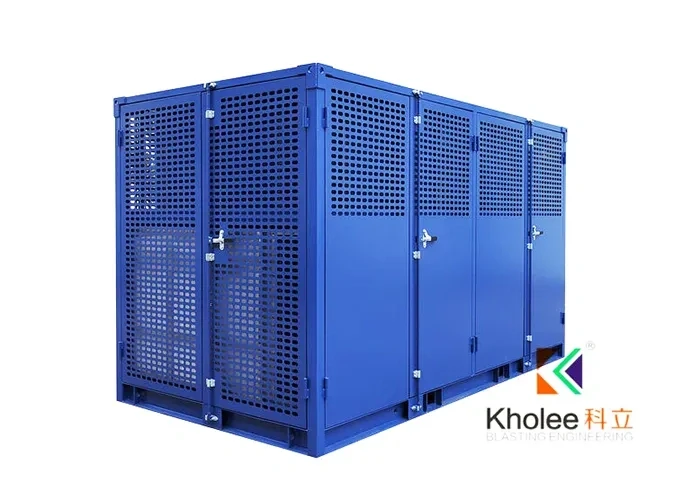

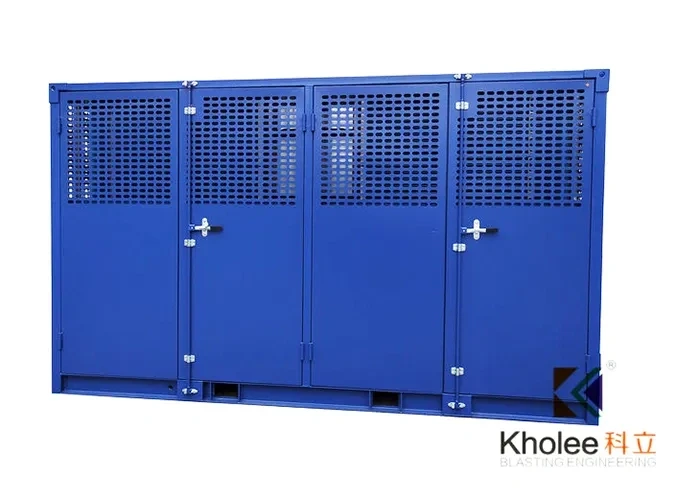

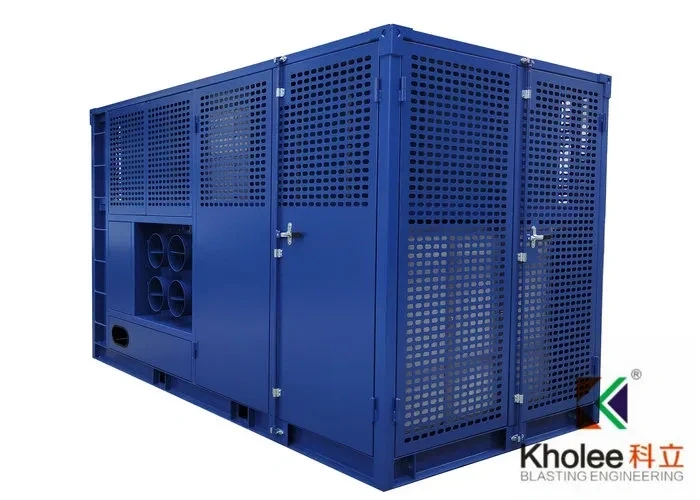

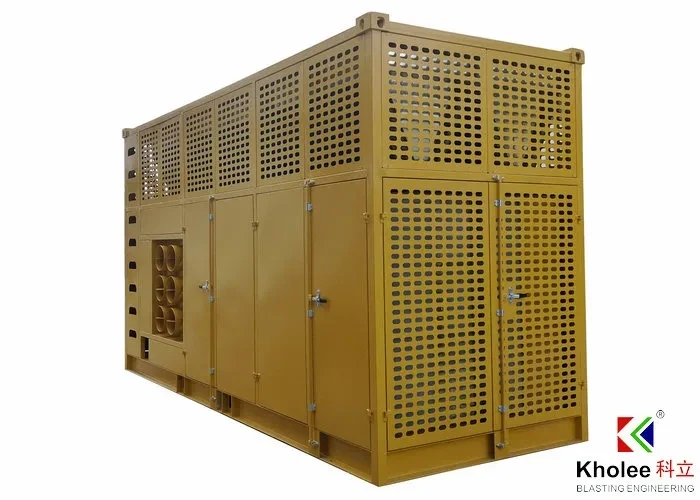

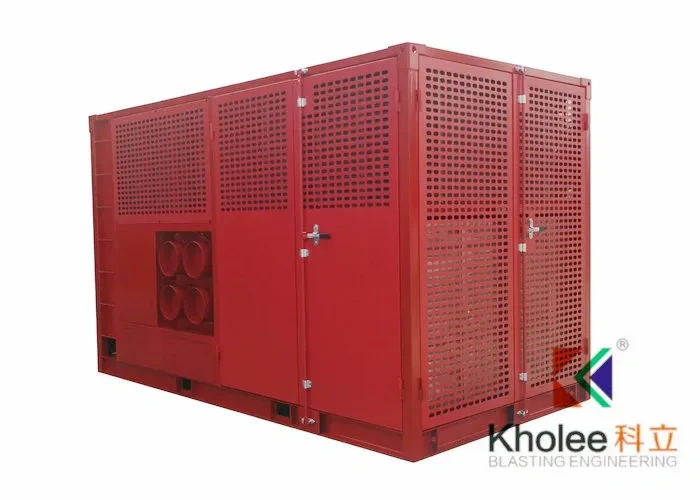

Eco-friendly Air Cooled Dehumidifier is delivered as a complete unit with fans, filters, condenser, evaporator, compressor and controls. The dehumidifier is ready for site installation and connection to standard-size ducting. Each dehumidifier will be custom designed according to the local conditions and the needs of the customer. The eco-friendly air cooled dehumidifier adopts R134A / R407C as refrigerant instead of R22, which is of no harmful to ozone layers. It meets the environmental protection requirements from developed countries. It adopts condensing heater to take place of electrical heater, energy saving during equipment operation.
◆ Specifications
| Model | KL-LFZ24000EFS Eco-Friendly Air Cooled Dehumidifer With Energy Saving Technology |
| Airflow Capacity | 24000CMH |
| Cooling Media | Air Cool |
| Working Method | 100% Refrigeration / 100% Consendation / 100% Heating |
| Refrigerant | R134A, Eco-Friendly to Ozonosphere |
| Inlet Air Condition | Temp 20~40°C / RH ≤95% upto 100% |
| Outlet Air Condition | Temp 25°C ±3/ RH ≤45% |
| Dew Point | 9°C~13°C |
| Evaporator | Copper Tube + Copper Fins with Stainless Steel Casing
Or Copper Tube + Hydraulic Aluminium Fins with Stainless Steel Casing |
| Condenser | Copper Tube + Copper Fins with Stainless Steel Casing
Or Copper Tube + Hydraulic Aluminium Fins with Stainless Steel Casing |

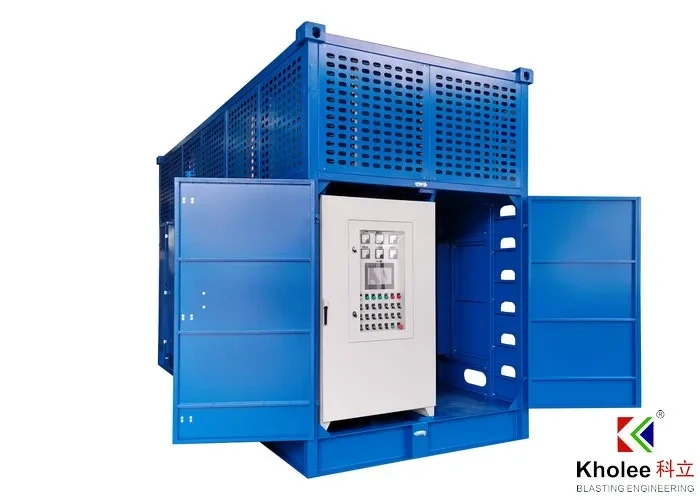

| Electrical Control | Touch Screen + PLC Control
Manual + Auto Control
Protection of electrical linkage, phase default, high and low Pressure, overload etc
Self-diagnosis
IP55 Enclosure
Power Supply 380~440V/50~60 Hz / 3Ph |
| Compressor | 60 KW / 80HP× 2 |
| Condensing Fan | 4 KW × 6 |
| Main Air Fan | 22 KW |
| Condensing Heater | No Electrical Heater Required, Energy Saving Technology
Copper Tube + Aluminium Fins |
| Total Power | 166 kw |
| Machine Structure | Containerized, Lifting Eye + Forklift Pocket |

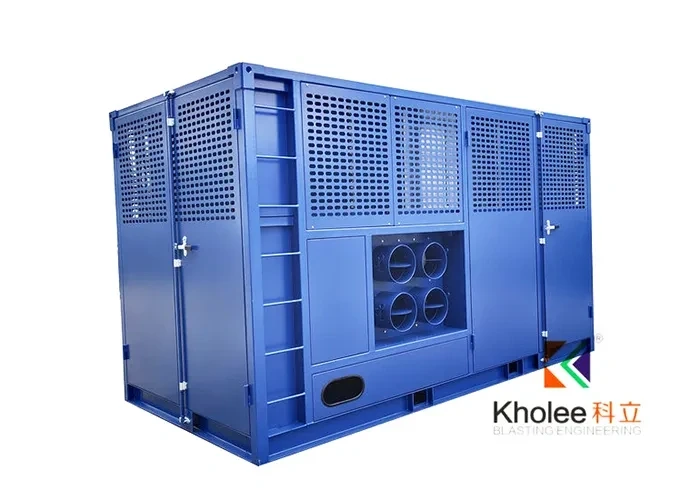

| Air Outlet Size | Φ300MM × 6 |
| Equipment Size | 5600× 2100× 3200 MM |
| Equipment Weight | Approx 6000 KGS |
◆ Advantages
● Exceptionally Efficient Dehumidification: Our air-cooled dehumidifiers rapidly reduce humidity levels while delivering 100% fresh air. This effectively prevents moisture-induced corrosion, making them ideal for humidity control in demanding, damp environments.
● Energy-Saving and Environmentally Responsible: The unit adopts advanced cooling and heating technology for low-energy operation. It uses R134a refrigerant, which is both environmentally friendly and highly efficient.
● User-Friendly Operation: Designed for simplicity, the equipment is easy to operate. Users can effortlessly adjust Temp & RH settings to maintain a consistently comfortable and controlled environment.
● Critical Equipment for Specialized Coating Applications: Air-cooled dehumidifiers are widely recognized as essential in shipbuilding, ship repair, marine drydocks, and oil & gas tank blasting and painting operations.
◆ Industry
◆ FAQ
Q: Where are air-cooled dehumidifiers suitable?
A: The air cooled dehumidifier is widely used in the area of Southeast Asia, South America with equatorial and tropical climate conditions
Q: Which industries are air cooled dehumidifiers used for?
A: The applications are numerous and wide spread. Below are some examples:
- Shipbuilding and Ship Repair Yards
- Oil & Gas Fabrication
- Oil & Gas offshore maintenance
- Large Blasting and Painting Rooms
- Ship drydocks
- Large maintenance projects
- Bridge Blasting projects
- Projects requiring a fast blast & painting turnaround, power stations, refineries
- Surface treatment during internal blasting and painting of tanks
- Controlling humidity levels in production processes
- Protection of equipment sensitive to corrosion
- Climatic improvements in damp areas
