Abrasive blasting is a common industrial process used to remove rust, oxide layers, paint film, welding slag, sand, burr and other scales on a variety of materials including metals, castings, plastics or composites. Blasting is a very diverse application containing of Shot Blasting Machine (wheel blasting), air blasting, cabinet blasters and sand blasting. The blasting media also varies widely from sand, steel, plastic, slag and various shot. This operation is done to prepare parts for final finishing (e.g.painting, machining, assembly) or to remove paint, scale or other finishing coatings for rework or reclamation. The basic function of pulse jet dust collector is to recover the unused shots and find dust particles from the chamber or room.


Some of the key benefits from abrasive blasting filtration include
- Worker health protection and minimized potential long term liability.
- Energy savings and conservation through recirculated conditioned air, where feasible.
- Extended machine life.
- Improved part / product quality
- Reduced housekeeping

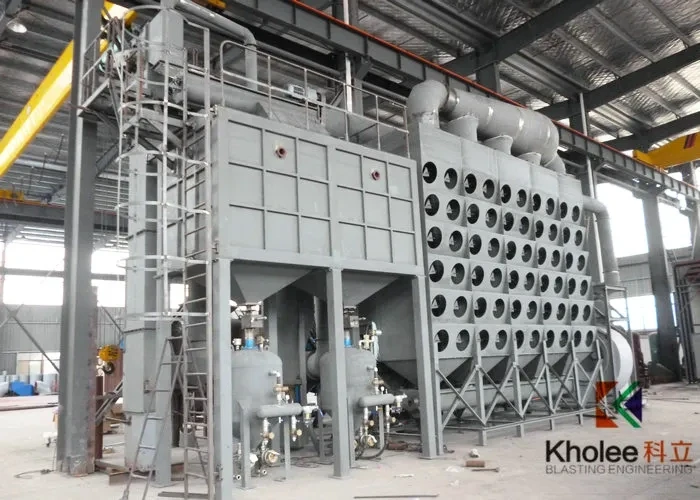

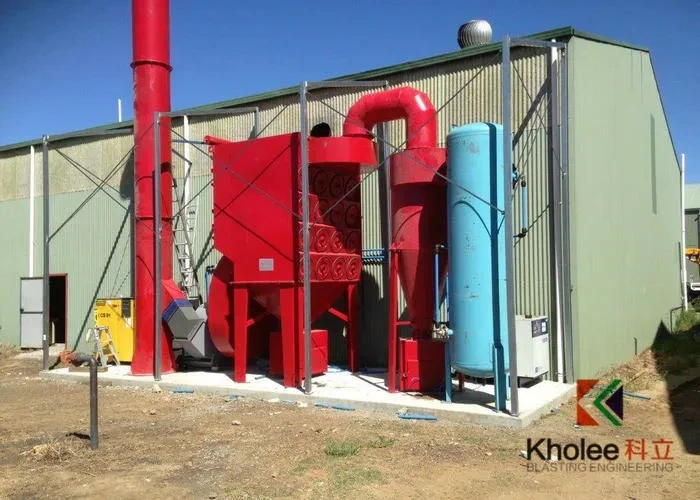

Our dust collector come with following:
- Cartridge Type Dust Collectors to save space and for increased life.
- Pre - Separator to recover unused shots.
- Internal baffle chamber to prevent damage of filter element.
- Dust Emission Density: 30mg/cbm ~ 80mg/cbm
- Filter Cartridge Material: Cellulose Fiber / Cellulose Fiber + Nano Film

◆ Advantages
● High-efficiency dust removal: Utilizing pulse jet cleaning technology, it can operate continuously in high-load environments, removing fine dust particles and ensuring air quality.
● Energy-saving design: The energy-efficient electrical control system and filter design reduce energy consumption and maintenance costs.
● Low maintenance: The rationally designed filter structure and excellent cleaning effect reduce the frequency of daily maintenance and improve equipment stability.
● Modular design: It can be flexibly configured to meet the needs of sandblasting operations of different scales and requirements.
● Excellent filtration efficiency: The high-precision filter design effectively filters more than 99% of dust, meeting environmental standards.

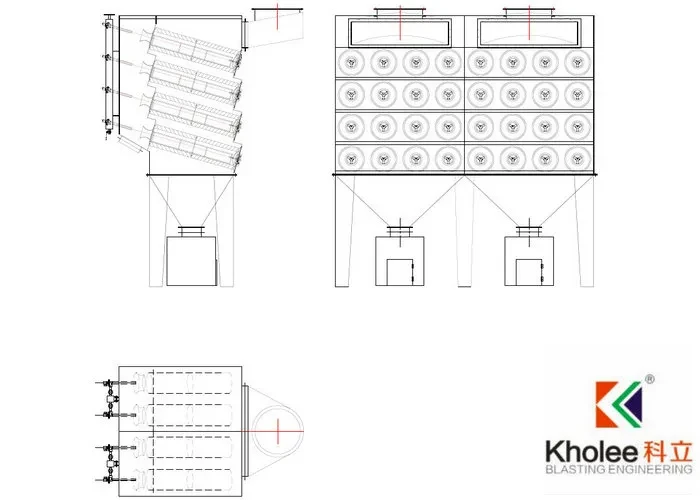

◆Specifications

◆ Note

- Kholee Blast also designs and manufactures non-standard pulse jet dust collector according to clients requirements.

- We have the policy to improve our equipment continuously & shall reserve the rights to change the dimensions and specs without prior notice.

◆ Industry Applications

◆ FAQ

How does a Pulse Jet Dust Collector work?
A Pulse Jet Dust Collector periodically removes dust from filters using a pulse jet cleaning system. When dust from the sandblasting process is drawn into the system, it undergoes initial filtration through the filters. The pulse jet system periodically sprays a powerful airflow into the filters, blowing away accumulated dust from the filter elements, keeping the filters clean, and ensuring long-term stable operation of the equipment.

  What sandblasting applications is a Pulse Jet Dust Collector suitable for?
Pulse Jet Dust Collectors are widely used in metal sandblasting, stone sandblasting, glass sandblasting, and other similar blasting surface treatment processes. They effectively remove fine dust generated during these processes, ensuring a clean working environment while protecting operators from harmful substances.

  How to choose the right Pulse Jet Dust Collector?
The selection of a Pulse Jet Dust Collector depends on the scale of the sandblasting operation, the type of dust, the working environment, and the equipment's maintenance requirements. For example, the appropriate filter capacity and cleaning system can be selected based on the size of the sandblasting chamber and the dust concentration. In addition, considering the energy efficiency and maintenance costs of the equipment, it is especially important to choose energy-saving and high-efficiency equipment.
