Kholee blast offers a wide range of portable abrasive blast equipment and accessories to cope with virtually all types of blasting environment and all the features that the professional user requires. With a guarantee fast filling, unrestricted airflow, easy access for inspection and maintenance design, our high production machines are manufactured to cover all possible requirements of the industry.
A choice of automatic or manually operated machines is available along with a grit valve, the single piece remote control deadman system and a silencer giving reduced labour cost, high efficiency of abrasive, performance and operator safety.
◆ Unique Features
- Construction heavy gauge construed pressure vessel fabrication tested to 12 bar with a working pressure of 10 bar.
- Piping on all machines are 1/2” Or 1-1/4”, with long life rubber lined parts fitted where necessary.
- Pop-up valve heavy duty to give quick response to pressurization.
- Concave head and conical bottom allows easy of filling and easy flow of all types of abrasive.
- Inspection door quick release for easy of inspection and servicing.
- Abrasive valves full range including flat valve, metering valve, Thompson valve.
- Mobility all machines mounted on large rugged wheels for easy maneuverability on site.
- Sieves and covers rugged well designed with handles and optional bag spliter.

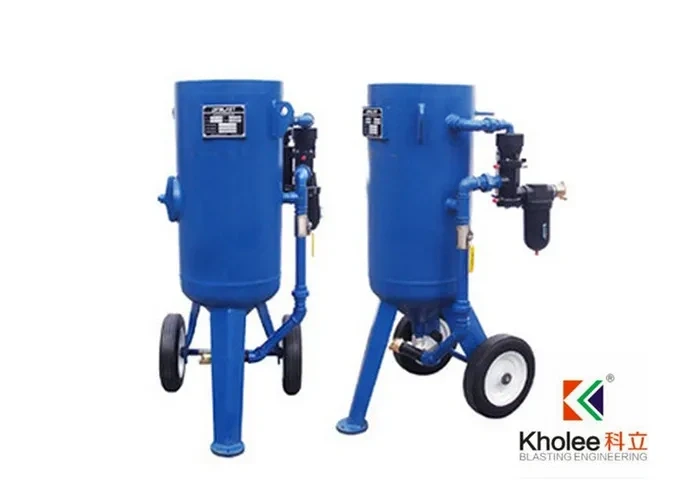

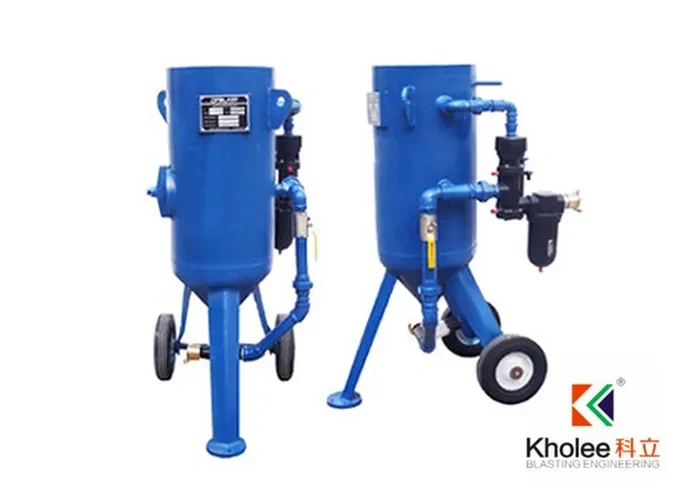

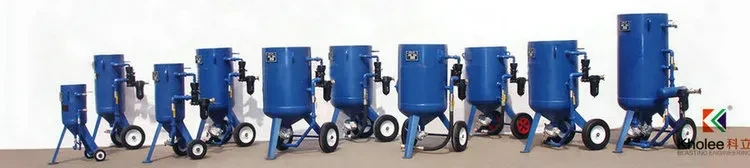

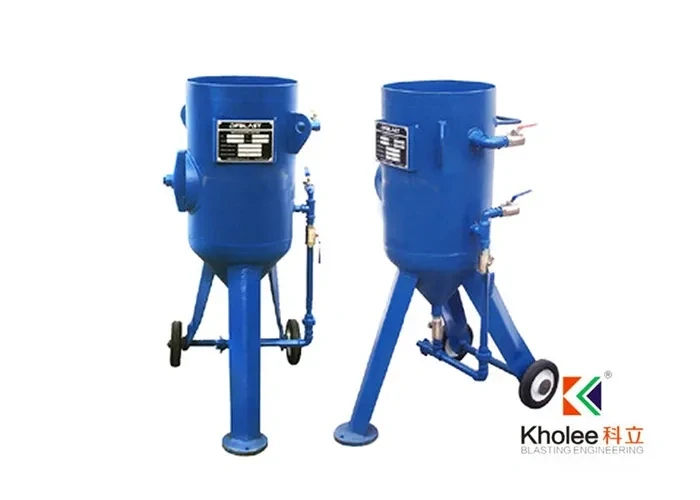

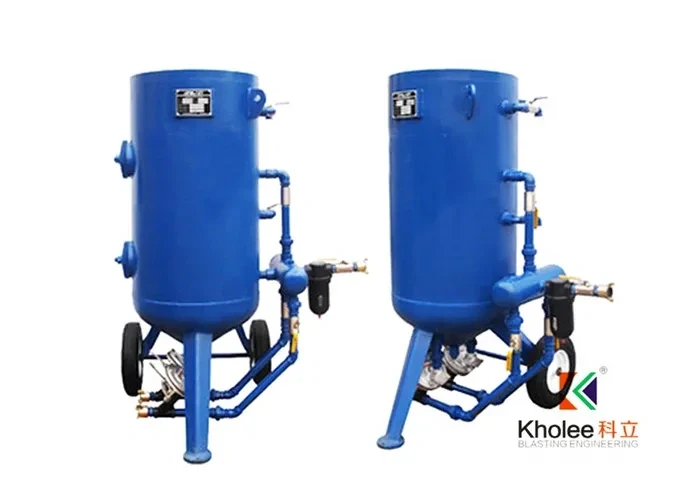

PORTABLE ABRASIVE BLASTING MACHINES |
MODEL | Capacity (Liter) | W/p (Bar) | Dimension Dia×Height(mm) | piping | Weight (kgs) |
KLSC50-1 | 20 | 8 | Φ273×745 | 1/2” | 57 |
KLSC100-1 | 60 | 10 | Φ350×1140 | 1-1/4” | 78 |
KLSC300-1 | 100 | 10 | Φ400×1300 | 1-1/4” | 108 |
KLSC400-1 | 150 | 10 | Φ500×1400 | 1-1/4” | 132 |
KLSC600-1 | 200 | 10 | Φ620×1333 | 1-1/4” | 201 |
KLSX800-DO | 300 | 10 | Φ620×1600 | 1-1/4” | 245 |
◆ NOTE
- Kholee Blast also designs and manufactures non-standard portable abrasive blasting machines according to clients’ requirements and work-pieces size.
- We have the policy to improve our equipment continuously & shall reserve the rights to change the dimensions and specs without prior notice.
◆ Further Information
- High performance abrasive blasting of metal constructions and buildings, bridges, reservoirs, piping, concrete surfaces.
- Pneumatic remote control enables the system to be de-activated in seconds from the nozzle.
- Easily serviceable operational components minimizes down time.
- Large top inspection port provides quick pop-up change over and no need to battle with internal pipe work.
- Large urethane pop-up valve provides fast pressurization and allows quick abrasive loading.
TECHNICAL SPECIFICATIONS |
MODEL | KLSC50-1 | KLSC100-1 | KLSC300-1 | KLSC400-1 | KLSC600-1 | KLDC800-DO |
Machine Diameter | 273 MM | 350 MM | 400 MM | 500MM | 620 MM | 620 MM |
Machine Height | 745MM | 1140MM | 1300MM | 1400MM | 1333MM | 1600MM |
Machine Weight | 90 KGS | 100 KGS | 150 KGS | 180 KGS | 200 KGS | 250 KGS |
Abrasive Capacity | 20 LITER | 60 LITER | 100 LITER | 150LITER | 200 LITER | 300 LITER |
Wheel Diameter | 150 MM | 150 MM | 340 MM | 340 MM | 400 MM | 400 MM |
Safe Working
Pressure | 860 KN/SQM (125PSI) |
Hydrostatic Test
Pressure | 1300KN/SQM (174 PSI) |
Fabrication Standard | CHINA STANDARD GB150 |
BLAST SYSTEM ACCESSORIES
Fitted with remote control system rms2000, moisture separator, abrasive metering valve, screen, cover, nozzle, helmet, airline filter, 20m remote control twin line rubber hose, 20m or 40m blast hose with coupling and nozzle holder, 20m helmet breathing air hose, blast suit and the pair of leather/cotton blasting gloves.
◆ Advantages
● Portable and Flexible: Its portable design makes it suitable for various environments, enabling efficient surface treatment in different work areas and reducing the hassle of equipment relocation.
● Space-Saving: Its compact design takes up little space, making it ideal for workplaces with limited space, especially when it needs to be moved to different locations for treatment.
● Easy to Operate: The equipment is easy to operate, allowing users to quickly learn how to use it. It also features an easy-to-maintain system, minimizing downtime.
● Durable and Reliable: Constructed from robust materials, the portable shot blasting machine can be used for extended periods in harsh working environments, maintaining high performance.
● Environmentally Friendly and Clean: This equipment effectively reduces dust during sandblasting operations, lowering environmental pollution and improving workplace safety.

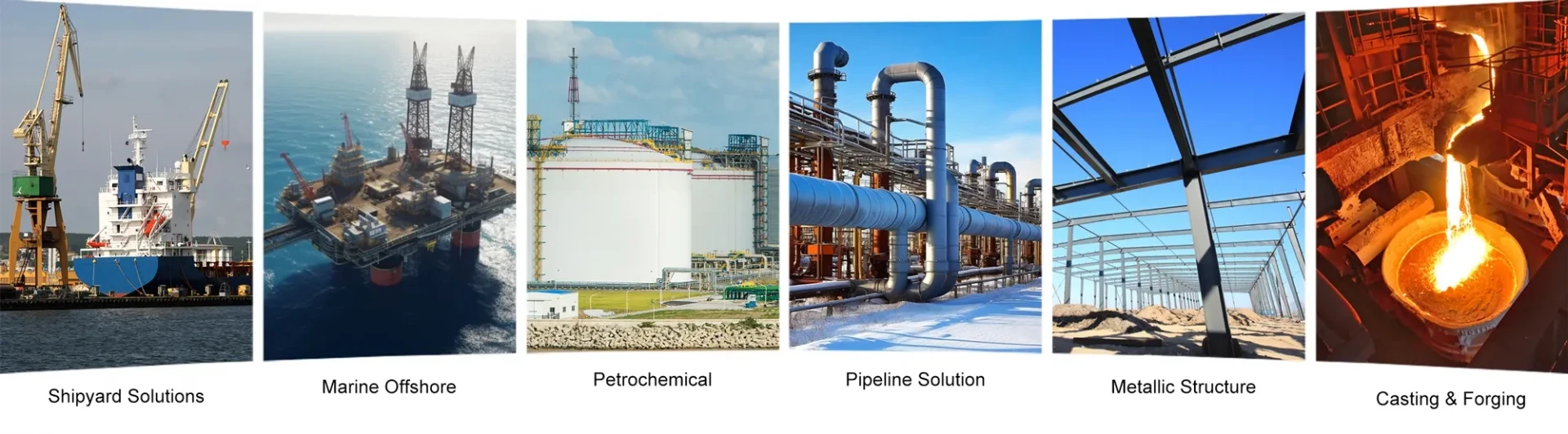

◆ Industry
◆ FAQ
What types of surface treatments are portable blasting machine suitable for?
Portable shot peening machines are suitable for removing rust, oil, oxides, and other impurities from metal, stone, and concrete surfaces. They are widely used in metal processing, building repair, and pre-painting preparation.
How to improve the working efficiency of a portable blasting machine?
Methods to improve efficiency include selecting appropriate shot peening materials and adjusting the blasting pressure to ensure uniform and rapid removal of surface impurities. In addition, regular equipment inspection and keeping the abrasive clean can also improve efficiency.
What safety measures are required when using a portable blasting machine?
When operating, wear protective glasses, earmuffs, and a dust mask to avoid inhaling dust and abrasive splashes. Regularly inspect the equipment to ensure the blasting and airflow systems are functioning properly and to ensure operator safety.
