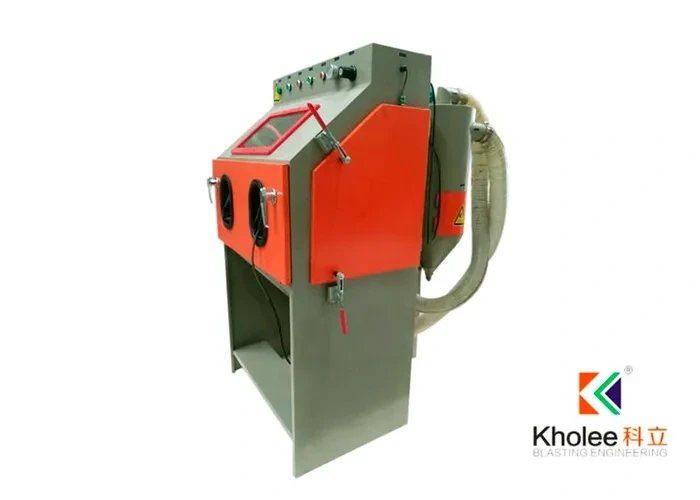

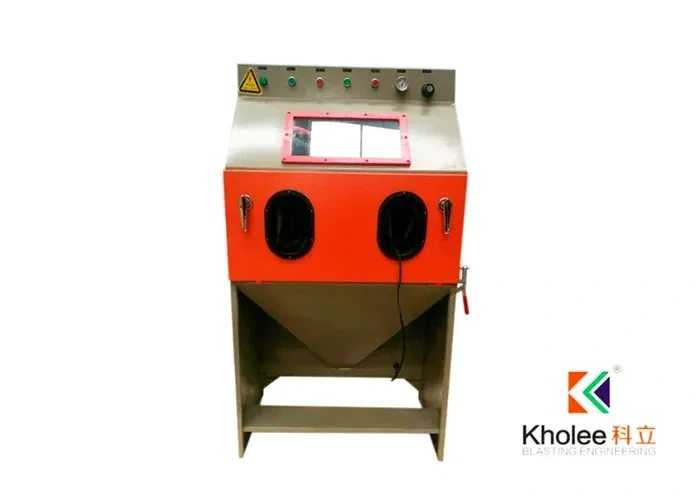

Kholee Blast offers manual drying sand blasting cabinet, which is used to remove rust, oxide layers, paint film from castings, welding parts, heat treatment parts and improve roughness.

◆ Character

- Special design and easy operation

- Auto abrasive recovery, good air discharge and high temperature resistance.

- According to the requirements of dies/mold, the blasting strength can be adjusted.

- Key parts adopts imported material, long life service

- Cyclone separator which can separate dust and sand efficiently.

- Electroplating, spraying process, improve adhesion; all kinds of mold, casting parts, metal, nonmetal surface heat treatment, to oxide skin, to residue, rust, oil,  refurbished; all ceramic products, glass products, plastic products, light act the effect!

◆ Application

- Clean oxide layers, burr and welding slag from heat treatment parts, welding parts, casting. The surface quality can reach sa3.0 after blasting.

- Clean small burr and residues on machining parts

- Do pre-treatment to parts before coating, which can improve adhesive of coating film.

- Improve physical and mechanical properties such as surface stresses, lubricating conditions of mating parts

- Improve roughness, finishing processes

- Surface peening and eliminate stress

- Renew old parts

- Clean mould/die, no damage to the surface of mould/die, guarantee precision of mould and improve products grades.

◆ Specifications

◆ NOTE

- Kholee Blast also designs and manufactures non-standard MANUAL DRYING SAND BLASTING CABINET according to clients’ requirements and work-pieces size.

- We have the policy to improve our equipment continuously & shall reserve the rights to change the dimensions and specs without prior notice.

◆ FAQ

What types of surface treatment work is a sandblasting booth suitable for?

Sandblasting booths are mainly used for cleaning, grinding, and polishing the surfaces of workpieces made of metal, plastic, glass, ceramics, etc. They effectively remove rust, oil, scale, welding residue, and other impurities from workpieces, while increasing surface roughness to provide a good foundation for subsequent coating or paint adhesion. Suitable for small or medium-sized batch production of parts, they are widely used in industries such as machining, jewelry cleaning, and electronic components.

How to improve the cleaning efficiency of a sandblasting booth?

Methods to improve the cleaning efficiency of a sandblasting booth include using high-quality sandblasting materials, adjusting the jet air pressure, optimizing the jet angle, and selecting appropriate nozzles. In addition, regularly cleaning the sandblasting material and checking the airflow and filters of the equipment to ensure clean abrasive and uniform jetting can effectively improve the sandblasting effect. At the same time, organizing the workflow rationally and reducing downtime can also improve efficiency.

Common faults of sandblasting booths and their solutions?

Common faults of sandblasting booths include nozzle blockage, unstable air pressure, and poor abrasive flow. Solutions include regularly checking the nozzles to ensure they are not clogged and performing necessary cleaning; adjusting the air pressure to a suitable level to ensure stable sandblasting results; and regularly checking and replacing the abrasive to prevent excessive impurities from affecting the cleaning effect.
