Kholee Blast offers manual drying sand blasting cabinet, which is used to remove rust, oxide layers, paint film from castings, welding parts, heat treatment parts and improve roughness.
◆ Character
- Special design and easy operation
- Auto abrasive recovery, good air discharge and high temperature resistance.
- According to the requirements of dies/mold, the blasting strength can be adjusted.
- Key parts adopts imported material, long life service
- Cyclone separator which can separate dust and sand efficiently.
- Electroplating, spraying process, improve adhesion; all kinds of mold, casting parts, metal, nonmetal surface heat treatment, to oxide skin, to residue, rust, oil, refurbished; all ceramic products, glass products, plastic products, light act the effect!
◆ Application
- Clean oxide layers, burr and welding slag from heat treatment parts, welding parts, casting. The surface quality can reach sa3.0 after blasting.
- Clean small burr and residues on machining parts
- Do pre-treatment to parts before coating, which can improve adhesive of coating film.
- Improve physical and mechanical properties such as surface stresses, lubricating conditions of mating parts
- Improve roughness, finishing processes
- Surface peening and eliminate stress
- Renew old parts
- Clean mould/die, no damage to the surface of mould/die, guarantee precision of mould and improve products grades.
◆ Specifications

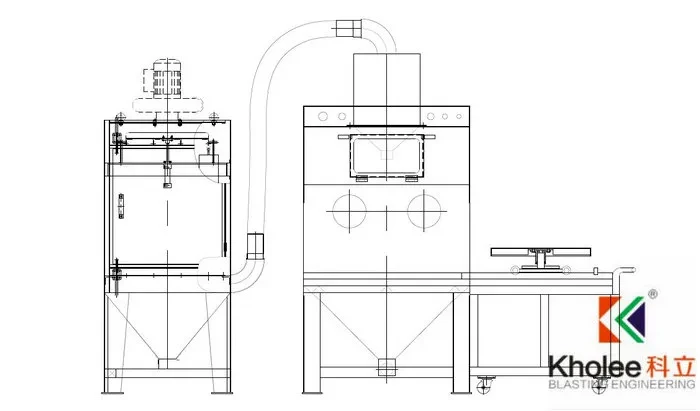

Manual Dry Sand Blast Cabinet with Turntable |
Model | KL-BC9060T | KL-BC9080T | KL-BC1010T | KL-BC1212T | KL-BC1515T |
Working Cabinet Internal size(mm) | 900×600×660 | 900×800×700 | 1000×1000×790 | 1150×1190×930 | 1500×1500×930 |
TURNTABLE DIAMETER (MM) | Φ500 ~ Φ700 |
Turntable loading | 150 kgs |
Whole Equipment size WITHOUT TURNTABLE (mm) | 900×1030×1560 | 900×1000×1900 | 1000×1540×1830 | 1200×1200×2200 | 1500×2000×2300 |
Dust Collector sizes(mm) | 600×600×1680 | 600×600×1680 | 600×600×1680 | 800×800×1680 | 800×800×1680 |
Side door size(mm) | 470×500 | 650×500 | 850×670 | 950×860 | 1250×1000 |
Front door size(mm) | 895×355 | 900×380 | 1000×380 | 1200×400 | / |
Power | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz |
Machine Light | 220V 13W | 220V 13W | 220V 13W | 220V 13W | 220V 13W |
Separator motor | 220V 50Hz 550W | 220V 50Hz 550W | 220V 50Hz 550W | 220V 50Hz 550W | 220V 50Hz 550W |
Separator air volume | 8.5 m3/min | 8.5 m3/min | 8.5 m3/min | 8.5 m3/min | 8.5 m3/min |
Compressed Air | 2-8bar | 2-8bar | 2-8bar | 2-8bar | 2-8bar |
Weight | 370kg | 370kg | 430 kg | 450kg | 650 kg |
◆ NOTE
- Kholee Blast also designs and manufactures non-standard MANUAL DRYING SAND BLASTING CABINET according to clients’ requirements and work-pieces size.
- We have the policy to improve our equipment continuously & shall reserve the rights to change the dimensions and specs without prior notice.
◆ FAQ
What types of workpieces is a turntable sandblasting cabinet suitable for?
A Turntable Sandblasting Cabinet is suitable for surface cleaning of small to medium-sized workpieces, especially those requiring 360-degree uniform sandblasting. Common workpieces include metal parts, automotive components, mechanical assemblies, and electronic components. Due to the rotating disc, the workpiece is ensured to receive uniform force during sandblasting, making it suitable for removing rust, oxides, oil stains, and other impurities, and providing an ideal adhesion base for subsequent coatings.
How to improve the sandblasting effect of a turntable sandblasting cabinet?
Methods to improve sandblasting effect include selecting appropriate sandblasting materials (such as steel grit, aluminum grit), adjusting the appropriate air pressure and nozzle angle to ensure uniformity of the sandblasting process. Properly controlling the disc speed and the distance between the workpiece and the nozzle helps achieve better cleaning results. Regularly cleaning impurities from the sandblasting material to ensure the equipment is always in optimal condition is also key to improving results.
What are the maintenance and care precautions for a turntable sandblasting cabinet?
Maintenance of a Turntable Sandblasting Cabinet includes regularly inspecting the nozzles, disc, electrical system, and filtration system to ensure they are functioning properly. After a certain period of use, clean impurities from the abrasive to prevent nozzle clogging and maintain uniform sandblasting. It is also necessary to check the seals to prevent sand leakage and abrasive waste, and replace the filter regularly to ensure a clean working environment and long-term equipment use.
