◆ Specifications

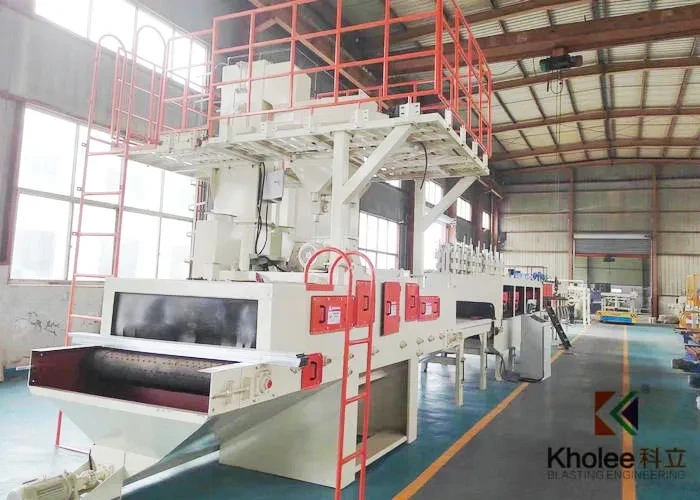

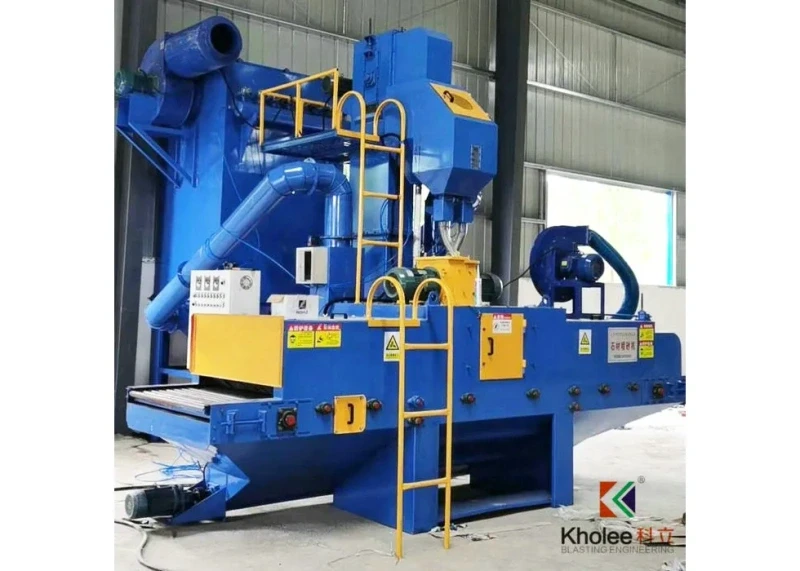

Equipment Name | KLCT1050-2 Shot Blasting Machine for Marbles and Paver Bricks |
Shot Blasting Chamber | Entry & Exit Open: W ×H 1050×500mm Wearing Resistance Plate Liner in Main Blasting Chamber by Mn13 Steel Plate In-feeding & Out-Feeding Rollers, free of power Transportation Conveyor: Wearing Resistance Rubber Belt Working Speed: 0.5~5.0m/min Power: 2.2kw |
Screw Conveyor | Delivery Capacity: 30 t/hr Power: 2.2kw |
Bucket Elevator | Lifting Capacity: 30 t/hr Power: 2.2kw |
Dust-Shots Separator | Air Wash Air Flow Speed: 4~5m/s |
Blast Wheel | Model: KLQ034 Abrasive Flow: 135kg/min ×2 Power: 7.5kw×2 |
Abrasive Clean Off System | High Pressure Air Fan: 3kw Qty: 1 set |
Dust Removing System | Pulse Jet Bag Cartridge Dust Collector Model KL-DC64-BF Air Fan: 7.5kw Air Flow: 7260m3/hr Bag Filter Qty: 64 pcs Dust Cleaning: Pulse Jet |
Electrical Control System | Voltage/Frequency: 380V/50Hz Operation Type: PLC+ Manual control Equipped with China Famous Brand Elements Such as CHINT Breaker, contactor, time relay, thermal relay, button, switch etc. |
Total Power | Approx.32.1 kw |
Size of Equipment | Shot Blasting Unit L×W×H 5000×1800×4800MM Dust Collector 1600×1600×4350mm |
Equipment Weight | ~ 6,500 kg |
◆ Advantages
● High-efficiency cleaning: Shot blasting machines quickly remove dirt, oxides, and impurities from marble and paving brick surfaces, ensuring a clean workpiece surface suitable for mass production.
● Uniform blasting: The automatic control system ensures that each workpiece surface is evenly shot-blasted, guaranteeing consistent surface treatment results and avoiding the defects of manual cleaning.
● Energy saving and environmental protection: The abrasive recovery system allows for multiple uses, reducing abrasive waste and eliminating the need for chemical cleaning agents, meeting environmental standards and lowering operating costs.
● Improved adhesion: After shot blasting, the marble and paving brick surfaces develop a suitable roughness, which helps the adhesion of subsequent coatings or protective layers, increasing durability.
● Automated operation: The equipment uses automated control, reducing manual operation, improving production efficiency, and ensuring the stability and consistency of cleaning results.
◆ Industry
◆ FAQ
What types of marble and paving bricks are shot blasting machines suitable for?
Shot blasting machines are suitable for various types of marble and paving bricks, especially for building materials requiring efficient cleaning and surface treatment, such as floor tiles, wall tiles, and paving bricks.
How to improve the cleaning effect of a shot blasting machine?
The key to improving the effect lies in properly adjusting the blasting angle, abrasive particle size, and blasting speed. Regularly check the abrasive recovery system of the equipment to ensure continuous and efficient operation.
What safety precautions should be taken when using a shot blasting machine?
Safety glasses, earmuffs, and dust masks must be worn during operation to avoid shot splashing. Regularly check the blasting system to ensure that the electrical components, abrasive system, and nozzles are functioning properly.
