◆ Specifications

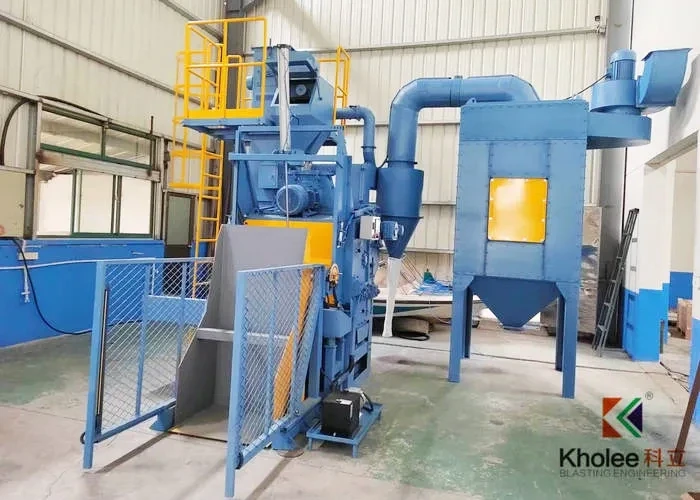

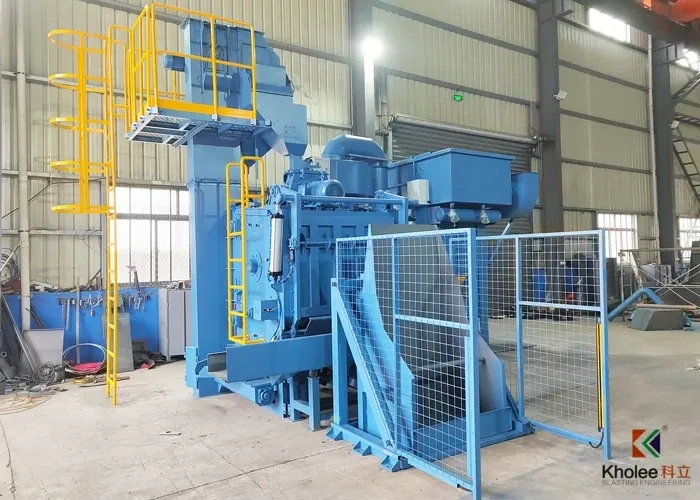

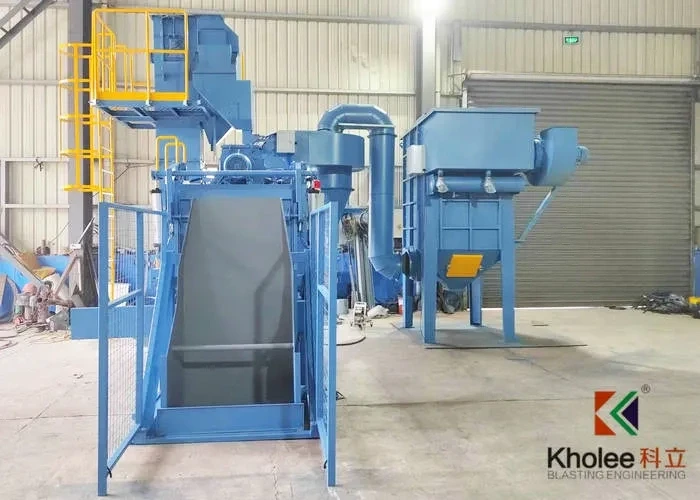

Equipment Name | Tumble Belt Shot Blasting Machine With Automatic Loading & Unloading System |
Model | KLBS-B650A |
Blast Wheels | 200kg/min - 11kw |
Tumble Belt | Wearing Resistance Rubber Belt with hole Φ6~12mm as optional Max Loading ≤250kg Max Products Weight ≤ 10kg/pc Driven by gear motor 0.75kw |
Vibrating Screen Conveyor under blasting chamber | 15t/hr - 0.15kw×2 Separating coarse contaminants |
Optional | Bucket Elevator 1# | 15t/hr - 1.5kw |
Dual Magnetic Separator | 15t/hr - 1.1kw |
Bucket Elevator 2# | 15t/hr - 1.5kw |
Air Wash Type Separator | 15t/hr Air Speed in Separating: 4~5m/s |
Dust Collector | 6800m3/hr-5.5kw Bag Filter Dust collector |
Blast Chamber | Wearing Resistance Round Plate Φ650mm Equipped with Auto Pneumatic Door Blasting Chamber protected by high chrome or Mn13 wearing resistance plate liner |
Vibrating Screen Conveyor For unloading | 0.25kw×2 |
Auto Loading System | Auto Hopper by Hydraulic System 2.2kw Loading ≤250kg |
Electrical Control | 380V/415V/50Hz~60Hz/3Ph Touch Screen + PLC, Auto + Manual Centerized Control Protection of electrical linkage, overload etc Interlock for all parts system, start or stop equipment in sequence Failure Protection Safety Infrared Grating |
Total Power of Equipment | ≤25kw |
Size of Equipment Without dust collector | ≤ 6700 × 2400 × 4000mm |
◆ Advantages
● High-Efficiency Cleaning: Shot peening machines can quickly remove dirt, rust, and scale from steel plate surfaces, ensuring a smooth and even surface suitable for mass production.
● Enhanced Surface Adhesion: The shot peening process, through the impact of tiny particles, creates a uniform roughness on the steel plate surface, enhancing the adhesion of coatings or anti-corrosion materials.
● Energy Saving and Environmental Protection: Compared to traditional mechanical cleaning methods, shot peening machines are more environmentally friendly, requiring no large amounts of chemical cleaning agents and reducing pollution.
● Improved Material Properties: Shot peening not only removes rust but also improves the surface stress distribution of steel plates, thereby enhancing their fatigue resistance and corrosion resistance.
● Reduced Labor Costs: The automated shot peening process significantly reduces manual operation costs and improves work efficiency.
◆ Industry
◆ FAQ
What types of castings are suitable for a shot blasting machine for sand casting?
This equipment is suitable for various metal castings, especially sand castings used in casting processes for cast iron, steel, and aluminum alloys, and is suitable for large-volume cleaning.
How to improve the efficiency of a shot blasting machine for sand casting?
Methods to improve efficiency include adjusting the blasting speed and abrasive particle size, regularly cleaning the equipment to ensure abrasive quality, and optimizing the placement of castings to improve shot blasting uniformity.
What safety precautions should be taken when using a shot blasting machine for sand casting?
During operation, wear protective glasses, earmuffs, and a dust mask to prevent injury from abrasive splashes. Regularly inspect the blasting system to ensure stable equipment operation and compliance with safety regulations.
