◆ Specifications
| SPINNER HANGER SHOT BLASTING MACHINE |
| Model | Hanger Quantity | Size of Products | Blasting Turbine | Hanger Loading Capacity |
| KL-H2MRCO610 | 2 NO.S | φ600×1000 MM | 120KW×2 | 400 KGS |
| KL-H2MRC0812 | 2 NO.S | φ800×1200 MM | 120/200KW×2 | 1,000 KGS |
| KL-H2MRC1012 | 2 NO.S | φ1000×1200 MM | 200/250KW×2 | 1,000 KGS |
| KL-H3MRC1215 | 2 NO.S | φ1200×1500 MM | 200/250KW×3 | 1,000 KGS |
| KL-H4MRC1218 | 2 NO.S | φ1200×1800 MM | 200/250KW×4 | 2,000 KGS |
| KL-H4MRC1422 | 2 NO.S | φ1400×2200 MM | 200/250KW×4 | 2,000 KGS |
| KL-H4MRC1520 | 2 NO.S | φ1500×2000 MM | 200/250KW×4 | 2,000 KGS |
| KL-H5MRC1825 | 1 NO.S | φ1800×2500 MM | 200/250KW×5 | 5,000 KGS |
◆ Advantages
High-efficiency cleaning: Spinner hanger shot blasting machines efficiently remove rust, oxides, and other impurities from workpiece surfaces, making them particularly suitable for irregularly shaped and large workpieces.

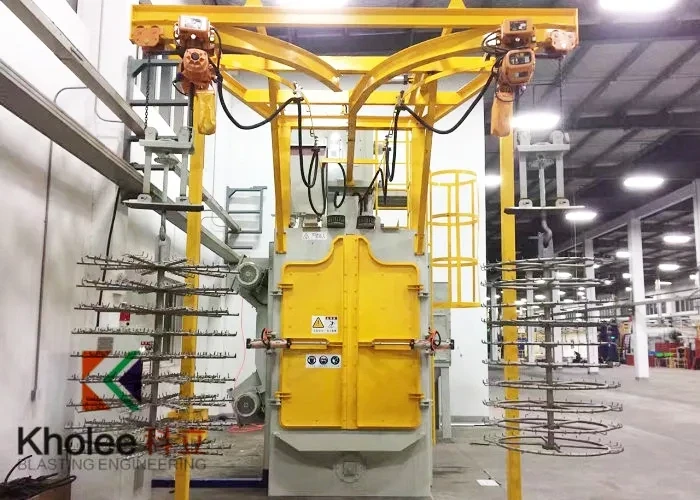

Uniform treatment: The hook system rotates the workpiece during shot peening, ensuring all surfaces are evenly peened, improving cleaning effectiveness and surface quality.
Enhanced adhesion: Shot peening creates a uniform roughness on the workpiece surface, improving the adhesion of coatings and anti-corrosion materials, and increasing workpiece durability.
Automated operation: The automated control system reduces manual operation, increases production efficiency, and ensures consistent and high-precision cleaning results.
Energy saving and environmental protection: Spinner hanger shot blasting machines significantly reduce resource waste and the use of chemical cleaning agents by recycling abrasive materials, meeting environmental protection requirements.
◆ Industry
◆ FAQ
What types of workpieces are suitable for Spinner Hanger Shot Blasting Machines?
Spinner Hanger Shot Blasting Machines are suitable for various large, heavy, and complex-shaped workpieces, such as castings, forgings, automotive parts, and mechanical components, and are especially suitable for cleaning irregularly shaped workpieces.
How can the working efficiency of Spinner Hanger Shot Blasting Machines be improved?
Methods to improve working efficiency include optimizing the shot blasting path, properly adjusting the workpiece rotation speed, and regularly cleaning and maintaining the blasting system to ensure uniform shot coverage, improve cleaning effect, and reduce abrasive waste.
What safety precautions should be taken when using Spinner Hanger Shot Blasting Machines?
Operators should wear appropriate personal protective equipment, such as safety glasses, earmuffs, and dust masks, to avoid injury caused by steel shot splash. In addition, the electrical system, mechanical components, and hook system of the equipment should be inspected regularly to ensure safe and stable operation.
