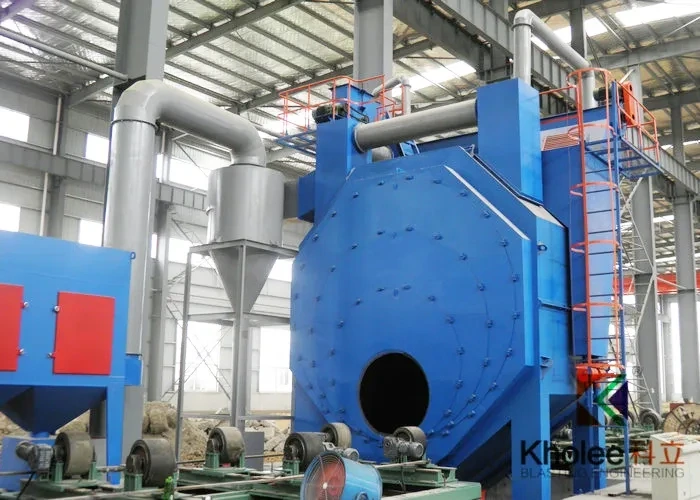

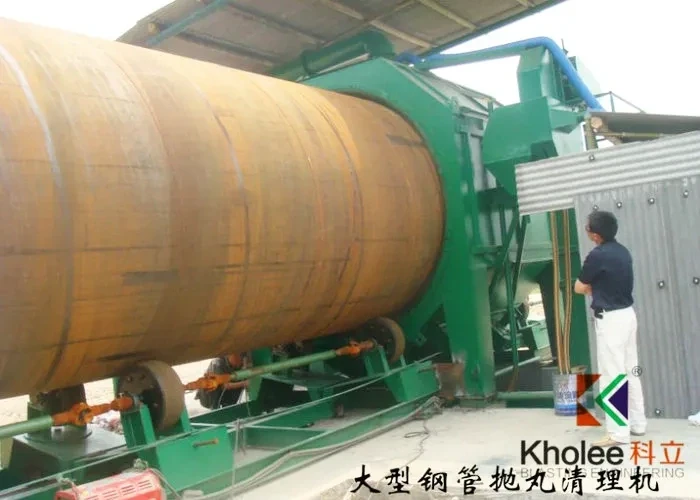

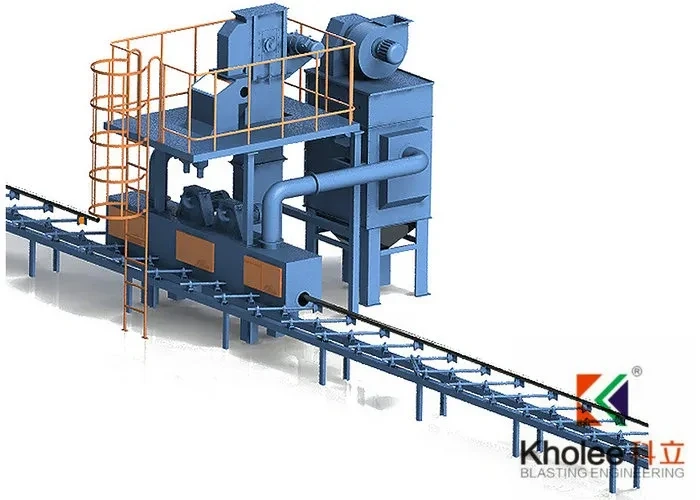

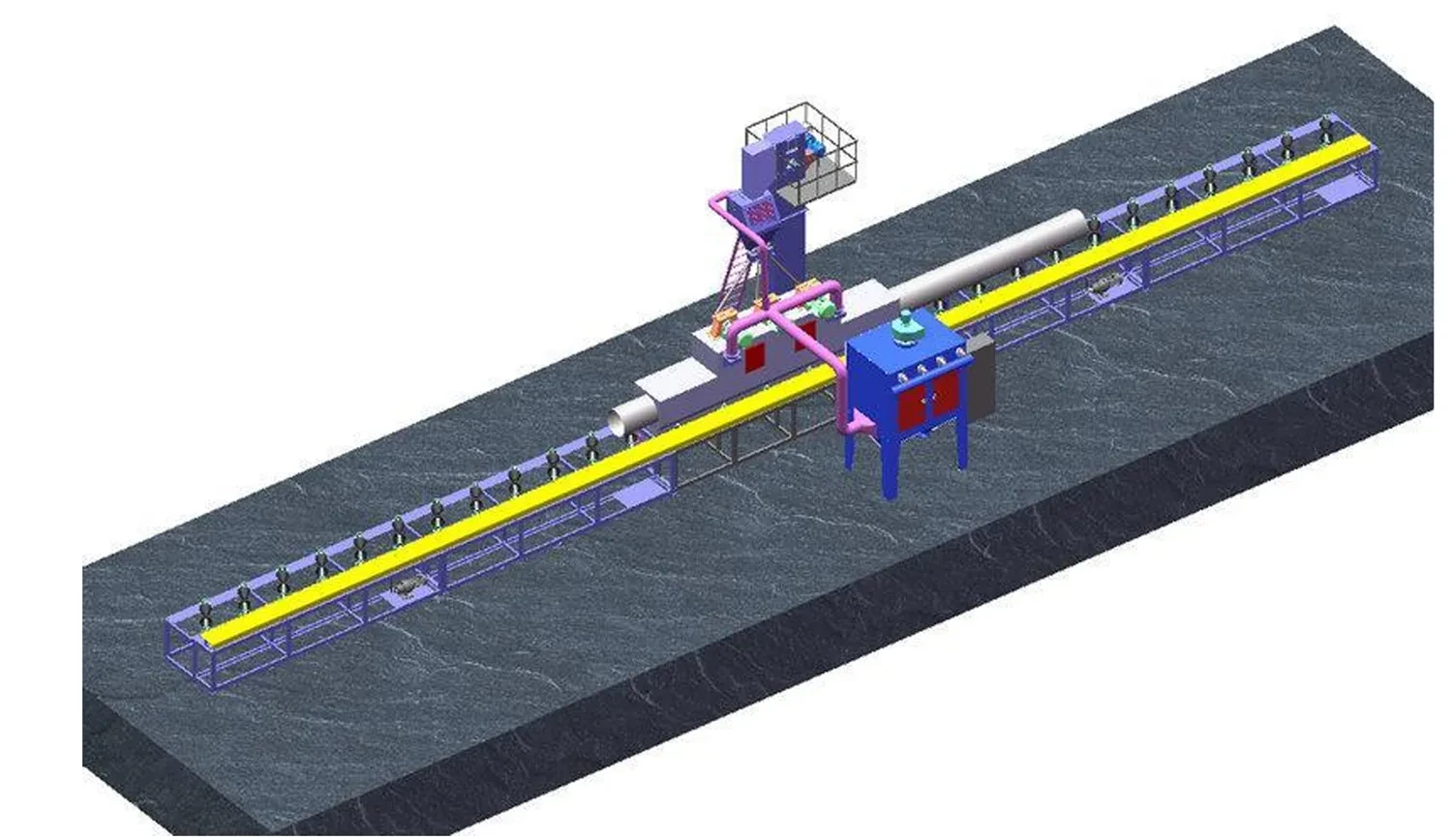

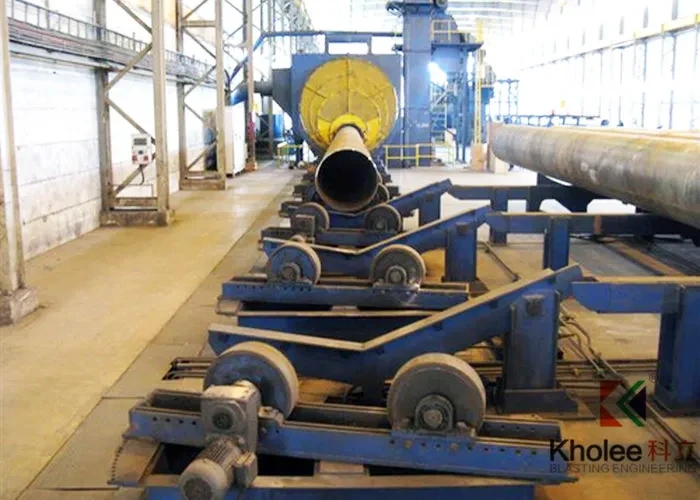

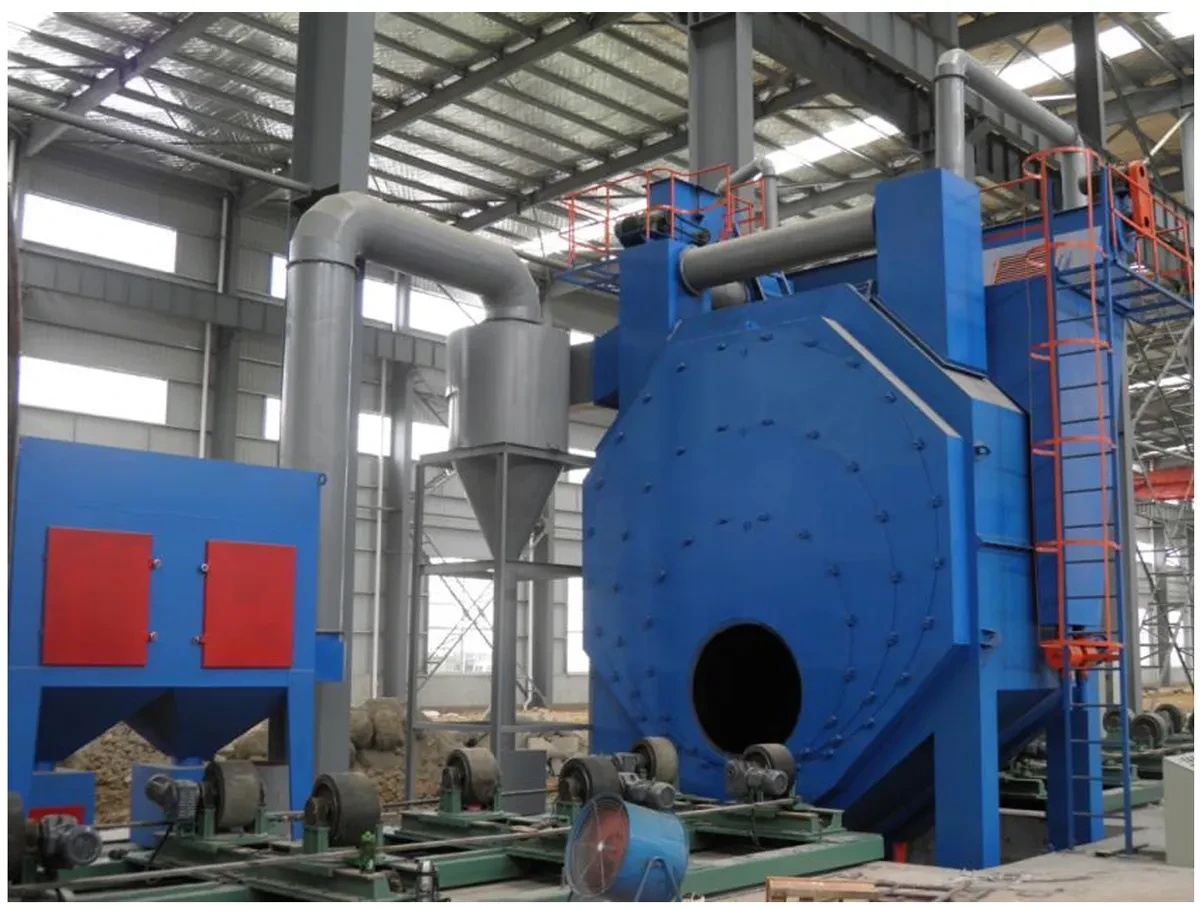

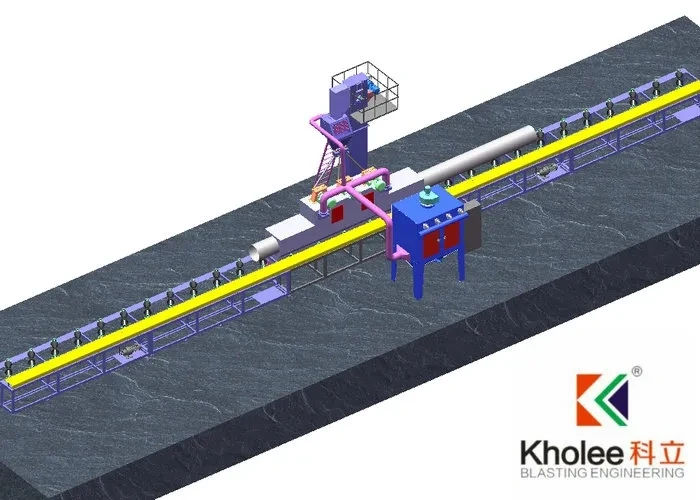

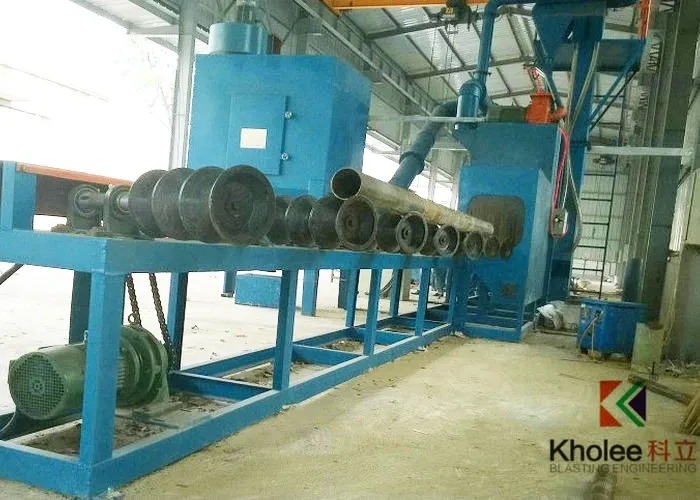

The equipment is comprised of in-feeding roller conveyor, shot blasting chamber, blasting turbine, shots recycle system, dust removing system, out-feeding roller conveyor and electrical control system etc.
◆ Specifications
| STEEL PIPE SHOT BLASTING MACHINE FOR EXTERNALSURFACE |
| Model | KLGP310-2E | KLGP300-2 | KLGP450-3 | KLGP600-3 |
| Steel Pipe Size(mm) | φ310×6,000 | φ300×9,000 | φ450×9,000 | φ600×9,000 |
| Qty of Tube Cleaned | 1~3 pcs | 1 pcs |
| Working Speed(m/min) | 0.5~3 |
| Shot Blasting Volume(kg/min) | 250×2 | 200×2 | 200×3 | 250×3 |
| Surface Quality After Blasting | Sa 2.5 GB8923-88(ISO8501) |
| Roughness After Blasting | Ra20~75 |
| Dust Emission Density(mg/m³) | 30mg/m³ |
| STEEL PIPE SHOT BLASTING MACHINE FOR EXTERNALSURFACE |
| Model | KLGP1220-2 | KLGP2000-2 | KLGP2800-2 | KLGP4000-2 |
| Steel Tube Size(mm) | Φ1,220×12,000 | φ2,000×12,000 | 中2,800×12,000 | φ4,000×12,000 |
| Working Speed | 0.5~3.0m/min |
| Shot Blasting Volume (kg/min) | 250×2 | 300×2 | 350×2 | 720×2 |
| Surface Quality After Blasting | Sa 2.5 GB8923-88(ISO8501) |
| Roughness After Blasting | Ra20~75 |
| Dust Emission Density | 30mg/m³ |
◆ Advantages
● High-efficiency cleaning: shot blasting machines can quickly remove rust, scale, and other impurities from steel pipes surfaces, significantly improving cleaning efficiency and making them suitable for mass production.
● Uniform treatment: the shot blasting process is uniform, ensuring thorough cleaning of the steel pipe surface and achieving consistent quality standards.
● Enhanced adhesion: after shot blasting, the steel pipe surface develops a suitable roughness, enhancing the adhesion of subsequent coatings, paints, or anti-corrosion materials.
● Environmentally friendly and energy-saving: the equipment adopts a high-efficiency dust fume control system, reducing dust emission produced by blasting to maxium and avoiding the use of harmful chemicals to clean metal surface, meeting environmental standards.
● Automated control: The automated system adopts PLC automatic control , reduces manual intervention, improves production efficiency, and ensures consistent cleaning results.
◆ Industry
◆ FAQ
Q: How do I know if your shot blasting machine is suitable for my products?
A: To ensure we recommend the most effective solution, please provide the following details about your application. The more information you share, the more accurate our proposal will be.
Q: What kind of products do you need to do blasting?
A: Steel Plate, steel structures, pipes, automotive parts, forged gears, structural steel, precision castings, sand casting etc
Q: Primary Purpose: What is the main goal of shot blasting?
A: Surface Cleaning: Remove rust, mill scale, oxide layers, old paint, or welding slag
Surface Preparation: coating, plating, or painting adhesion.
Deburring/Deflashing: Remove burrs from machined or stamped parts, aluminium parts .
Descaling: Remove heat-treated scale or casting sand, investment casting shell.
Peening: Improve fatigue strength (stress relief).
Aesthetic Finishing: Create a uniform matte or textured surface.
Q: What is your products Specifications
A: Maximum Workpiece: Length x Width x Height and Weight
Minimum Workpiece: Length x Width x Height and Weight
Typical Batch Size/Throughput: How many parts do you process per hour or per shift?
