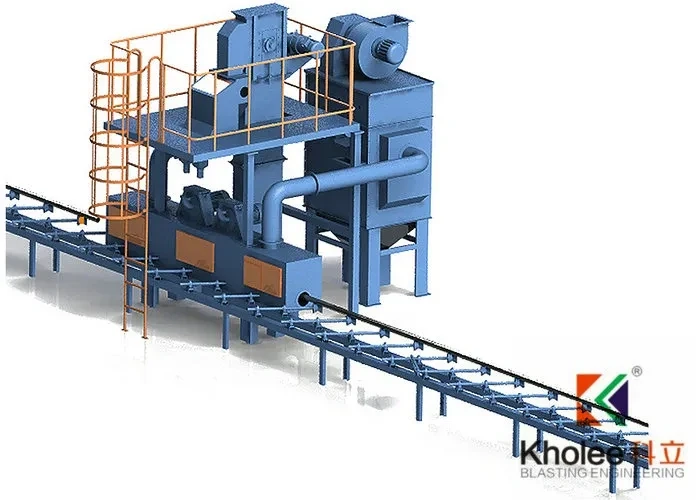

Key components include: in-feeding roller conveyor, shot blasting chamber, blast turbines, shot recycling system, dust collection system, out-feeding roller conveyor, and electrical control system.
◆ Application
Petroleum Chemical | Oil & Gas | Pipe Milling | Grid Engineering | Boiler Manufacturing
◆ Specifications

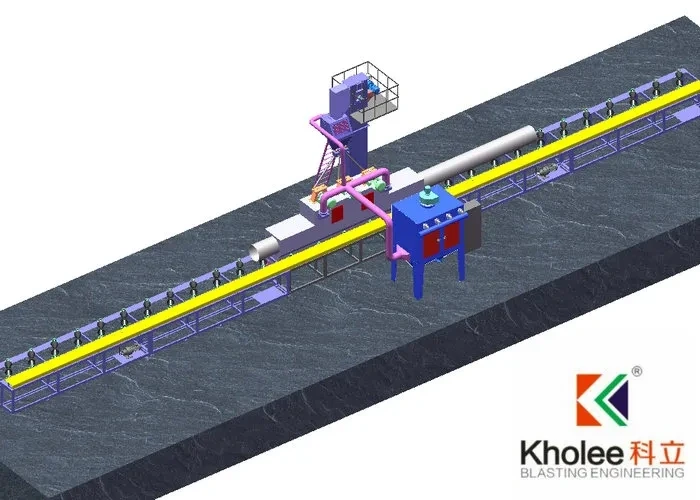

| Model | KLGP600-3 Steel Tube Shot Blasting Machine |
| Steel Tube Size | Φ600 × 12,000mm |
| Working Speed | 0.5~2.5 m/min |
| Roller Conveyor | 500 kg/m
9,000 mm × 2 |
| Blasting Wheel | 200kg/min × 3, 11kw × 3 |
| Abrasive Recycle System | Portrait Screw Conveyor 36 t/hr -3kw
Bucket Elevator 36t/hr - 4kw
Air Wash Type Separator 36t/hr |
| Dust Fume Control System | Cyclone Dust Collector Φ1000mm
KL-DC-12 Pulse Jet Dust Collector
Air Fan 12600m3/hr / 11kw
Dust Emission ≤30mg/m3 |
| Electrical Control System | 380V/50Hz/3Ph
Manual control + Auto
Equipped with Famous Brand Elements Such as Schneider, CHINT etc
PLC Auto Control, air breaker, contactor,
time relay, thermal relay, button, switch etc. |
| Surface Quality After Blasting | Sa 2.5 GB8923-88(ISO8501) |
| Roughness After Blasting | Ra20~75 |
| Noise Level | ≤ 85dB |
| Size of Equipment | 24,000×5,000×6,500mm |
| Total Power | ~ 55 kw |
◆ Advantages
● High-efficiency cleaning: shot blasting machines can quickly remove rust, scale, and other impurities from steel pipe surfaces, significantly improving cleaning efficiency and making them suitable for mass production.
● Uniform treatment: the shot blasting process is uniform, ensuring thorough cleaning of the steel plate surface and achieving consistent quality standards.
● Enhanced adhesion: after shot blasting, the steel plate surface develops a suitable roughness, enhancing the adhesion of subsequent coatings, paints, or anti-corrosion materials.
● Environmentally friendly and energy-saving: the equipment adopts a high-efficiency dust fume control system, reducing dust emission produced by blasting to maxium and avoiding the use of harmful chemicals to clean metal surface, meeting environmental standards.
● Automated control: The automated system adopts PLC automatic control , reduces manual intervention, improves production efficiency, and ensures consistent cleaning results.
◆ Industry
◆ FAQ
Q: How do I know if your shot blasting machine is suitable for my products?
A: To ensure we recommend the most effective solution, please provide the following details about your application. The more information you share, the more accurate our proposal will be.
Q: What kind of products do you need to do blasting?
A: Steel Plate, steel structures, pipes, automotive parts, forged gears, structural steel, precision castings, sand casting etc
Q: Primary Purpose: What is the main goal of shot blasting?
A: Surface Cleaning: Remove rust, mill scale, oxide layers, old paint, or welding slag
Surface Preparation: coating, plating, or painting adhesion.
Deburring/Deflashing: Remove burrs from machined or stamped parts, aluminium parts .
Descaling: Remove heat-treated scale or casting sand, investment casting shell.
Peening: Improve fatigue strength (stress relief).
Aesthetic Finishing: Create a uniform matte or textured surface.
Q: What is your products Specifications
A: Maximum Workpiece: Length x Width x Height and Weight
Minimum Workpiece: Length x Width x Height and Weight
Typical Batch Size/Throughput: How many parts do you process per hour or per shift?
