◆ Working Principle

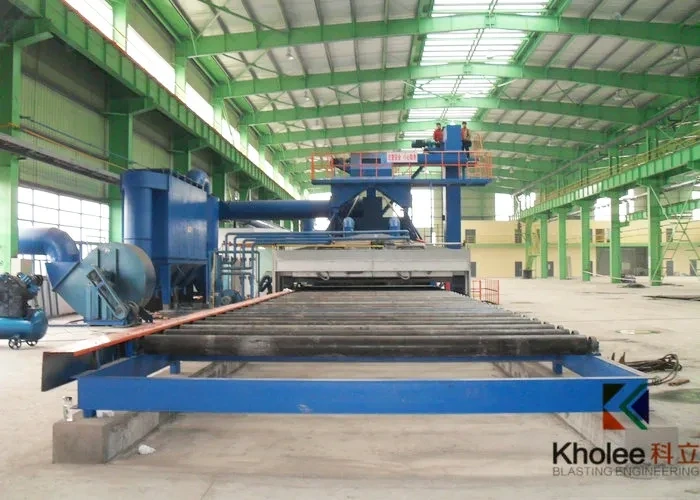

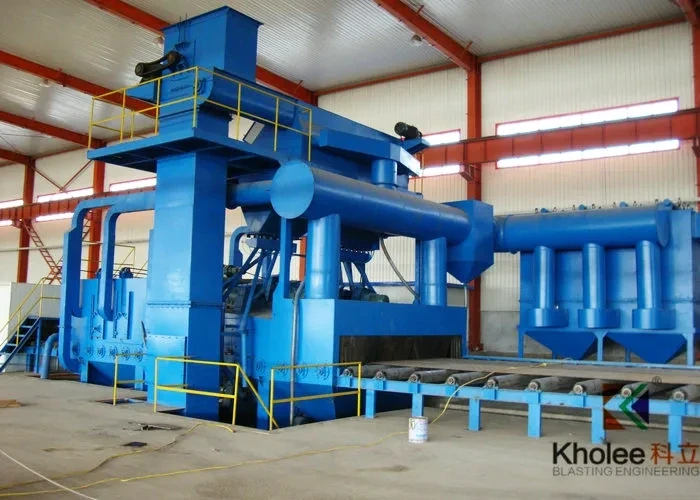

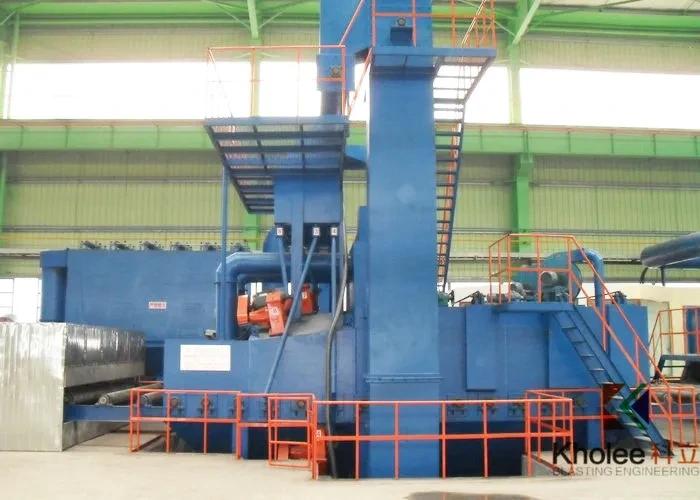

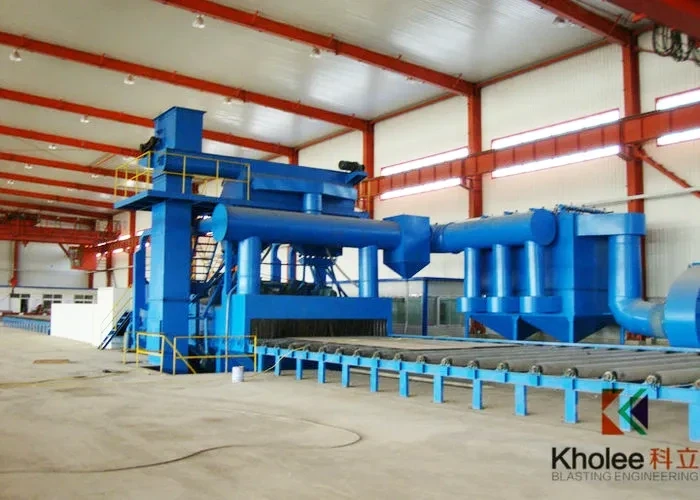

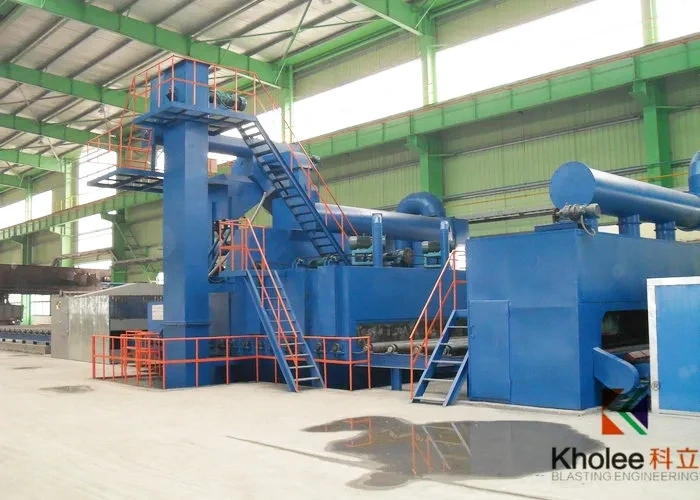

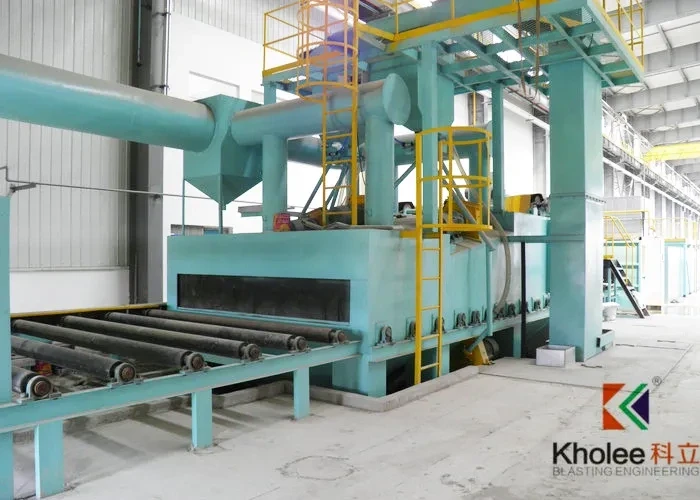

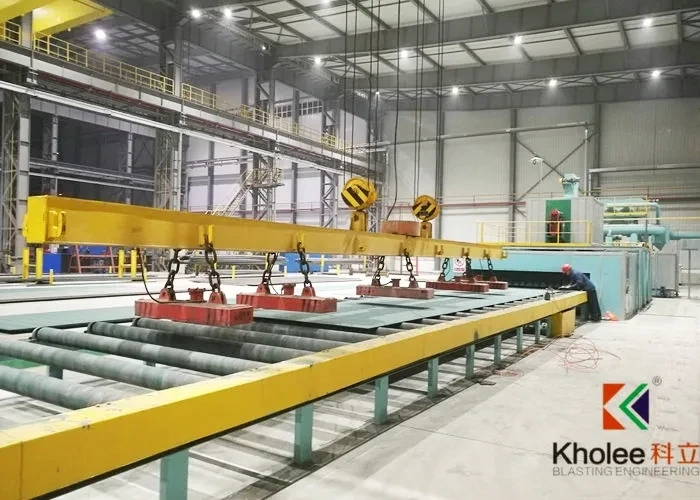

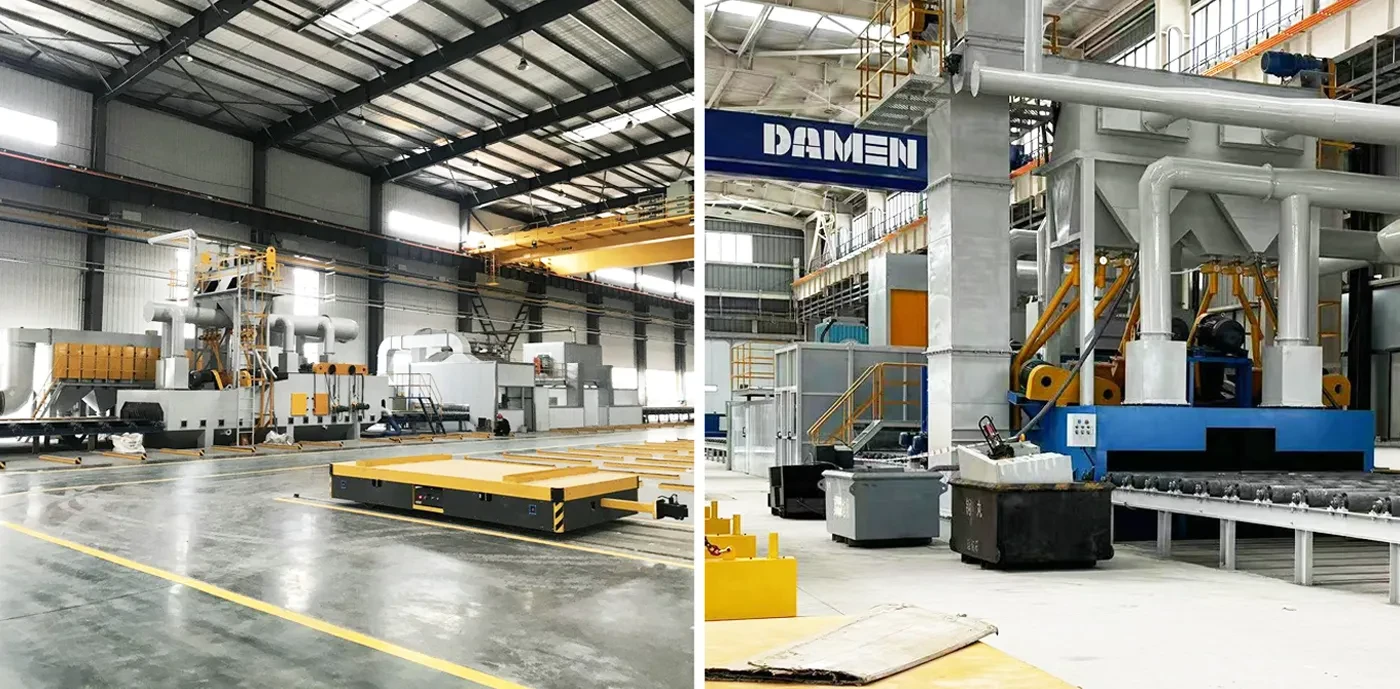

The equipment is high efficiency continuous working production line. The steel plate will be delivered into shot blasting chamber and accept shot blasting from different blasting turbine, thus rust, oxide layers will be cleaned quickly and the surface quality can reach Sa2.5. During blasting, the mixture of steel shots and dust will be collected by screw conveyor to bucket elevator and then separator for recycle. The dust produced by blasting will be filtered by pulse jet dust collector and then discharge qualified air into high sky.

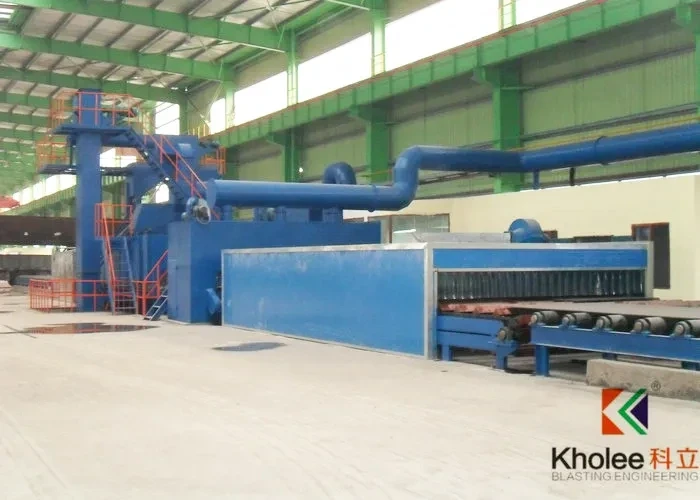

After shot blasting, the shots clean off system including scrapper, roller brush and high pressure air fan will clean the steel shots on the top surface of steel plate to make sure no steel shots on it. Then the steel plate will be delivered into painting spray booth for painting. After painting, the steel plate will be delivered into drying booth for drying. The drying booth has two type: electrical heating or oil/gas burning heating. After dying, the steel plate will be sent out to out-feeding roller conveyor.
◆ Specifications
| STEEL PLATE SHOTBLASTING PAINTING MACHINE |
| Model | KLY1500-4 | KLY2000-6 | KLY2500-6 | KLY3000-8 |
Steel Plate Size(mm)
Thick×Width×Length | (4~60)×1500
×6000 | (4~60)×2000
×9000 | (4~60)×2500
×12000 | (4~60)×3000
×12000 |
| Working Speed(m/min) | 0.5~3.0 |
| Shot Blasting Volume(kg/min) | 290×4 | 250×6 | 290×6 | 360×8 |
| De-dust Air Volume(m³/hr) | 25600 | 25600 | 32500 | 32500 |
| Surface Quality After Blasting | Sa 2.5 GB8923-88(ISO8501) |
| Roughness After Blasting | Ra20~75 |
| Painting Type | Airless Painting Spray 45:1 |
| Paint Film Thickness | 15~45μm |
| Drying Temperature | 45~70℃ |
| STEEL PLATE SHOTBLASTING PAINTING MACHINE |
| Model | KLY3500-8 | KLY4000-8 | KLY4500-10 | KLY5000-10 |
Steel Plate Size(mm)
Thick×Width×Length | (4~60)×3500
×12000 | (4~60)×4000
×12000 | (4~60)×4500
×12000 | (4~60)×5000
×12000 |
| Working Speed(m/min) | 0.5~4.0 |
| Shot Blasting Volume(kg/min) | 350×8 | 480×8 | 480×10 | 480×10 |
| De-dust Air Volume(m³/hr) | 39500 | 39500 | 48500 | 48500 |
| Surface Quality After Blasting | Sa 2.5 GB8923-88(ISO8501) |
| Roughness After Blasting | Ra20~75 |
| Painting Type | Airless Painting Spray 45:1 |
| Paint Film Thickness | 15~45μm |
| Drying Temperature | 45~70℃ |
◆ Advantages
● High-efficiency cleaning and coating: Through integrated design, shot blasting and coating of steel plates can be completed on the same production line, significantly improving production efficiency and surface treatment results.
● Consistency and precision: The automated control system ensures uniform treatment of each workpiece during shot blasting and coating, maintaining consistent product quality and meeting high standards for coating adhesion.
● Energy saving and environmental protection: The production line employs a highly efficient abrasive recovery system, reducing resource waste, and the coating uses environmentally friendly materials, meeting modern industrial environmental protection requirements.
● High production capacity: This production line is suitable for surface treatment of large batches of steel plates, effectively improving production efficiency and reducing manual intervention to meet the needs of large-scale production.
● Enhanced durability: Through shot blasting and coating, the surface of the steel plate is effectively protected, enhancing its corrosion resistance and durability, and extending its service life.
◆ Industry
◆ FAQ
What industries are suitable for steel plate shot blasting painting lines?
Steel plate shot blasting and coating production lines are widely used in industries such as steel, shipbuilding, construction, and machinery manufacturing, especially in fields requiring steel plate surface treatment and anti-corrosion coating.
How to ensure the stability and efficiency of the production line?
Ensure smooth operation of each link by regularly inspecting and maintaining the shot blasting system, coating system, and control system. In addition, optimize equipment configuration and operating procedures to ensure the production line operates efficiently and stably.
What safety measures are taken when using a steel plate shot blasting painting line?
Wear appropriate personal protective equipment during operation, such as safety glasses, earmuffs, and dust masks, to avoid steel shot splashing during the shot blasting process. At the same time, regularly inspect the equipment's electrical system, blasting device, and coating system to ensure the safe and stable operation of the equipment.
