The equipment consists of in-feeding roller conveyor, shot blasting chamber, blast wheels, shot recycling system, shot cleaning-off system, dust fume control system, out-feeding roller conveyor, and electrical control system
◆ Application
Shipbuilding | Marine Offshore | Engineering Machinery | Pressure Vessel Machinery | Bridge Construction | Oil & Gas Tank Fabrication
◆ Specifications
| Model | KLB2500-6 Steel Plate Shot Blasting Machine |
| Products Size | 2500 × (5~40) × 12000mm |
| Working Speed | 0.5~2.5m/min |
| Roller Conveyor | 1000kg/m
12000mm × 2 |
| Blasting Wheel | 290kg/min × 6, 18.5kw |
| Abrasive Recycle System | Portrait Screw Conveyor 110 t/hr -7.5kw
Transverse Screw Conveyor 110t/hr - 5.5kw
Bucket Elevator 110t/hr - 11kw
Air Wash Type Separator 110t/hr-5.5kw |
| Shots Cleaning Off System | Scraper, 1 unit
Screw Conveyor, 3kw
Roller Brush Φ900× 2200mm, 3kw
High Pressure Fan, 18.5kw
Lifting System: 1.1kw× 3 |
| Dust Fume Control System | Cyclone Dust Collector Φ1500mm
KL-DC-32 Pulse Jet Dust Collector
Air Fan 33600m3/hr / 30kw
Dust Emission ≤30mg/m3 |
| Electrical Control System | 380V/50Hz/3Ph
Manual control + Auto
Equipped with Famous Brand Elements Such as Schneider, China etc
Touch Screen +PLC Auto Control, air breaker, contactor,
time relay, thermal relay, button, switch etc. |
| Surface Quality After Blasting | Sa 2.5 GB8923-88(ISO8501) |
| Roughness After Blasting | Ra20~75 |
| Noise Level | ≤85dB |
| Size of Equipment | 32,000×6,500×7,500mm |
| Total Power | ~ 206 kw |

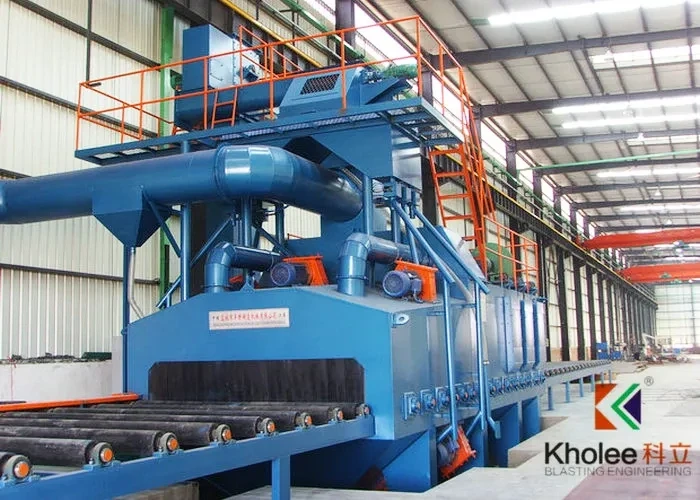

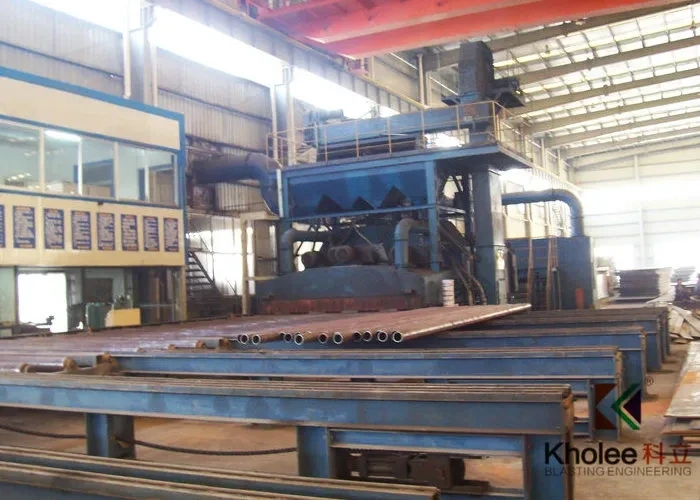

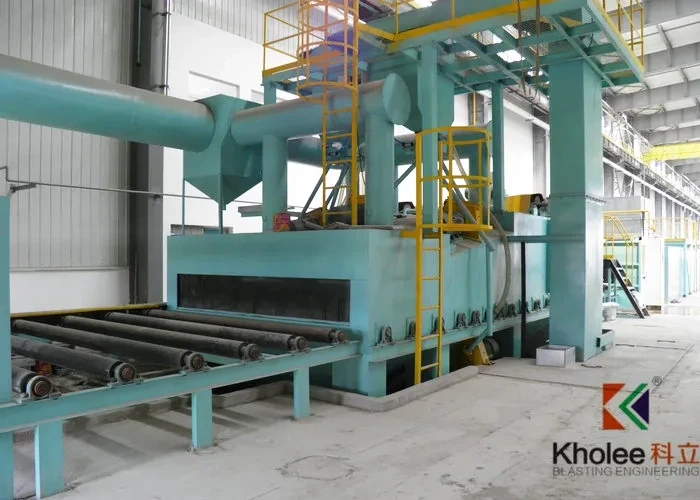

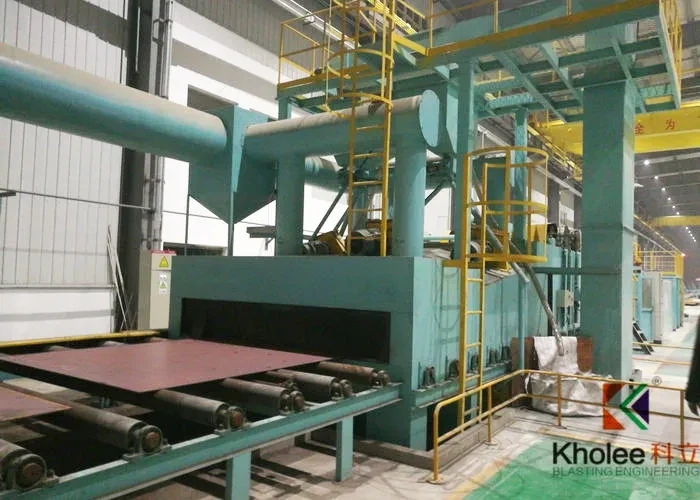

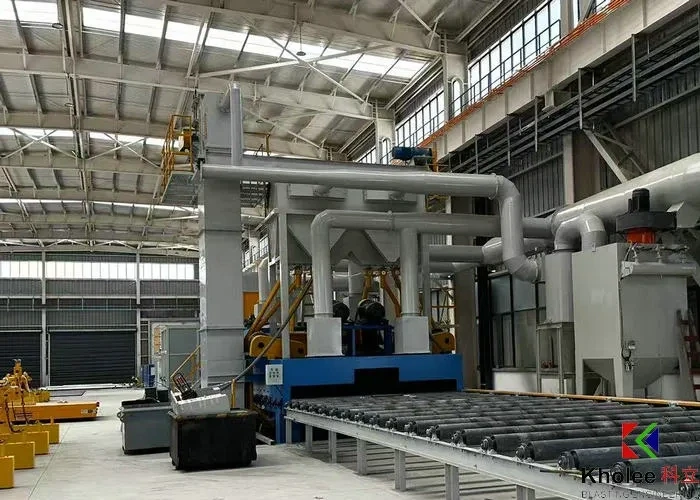

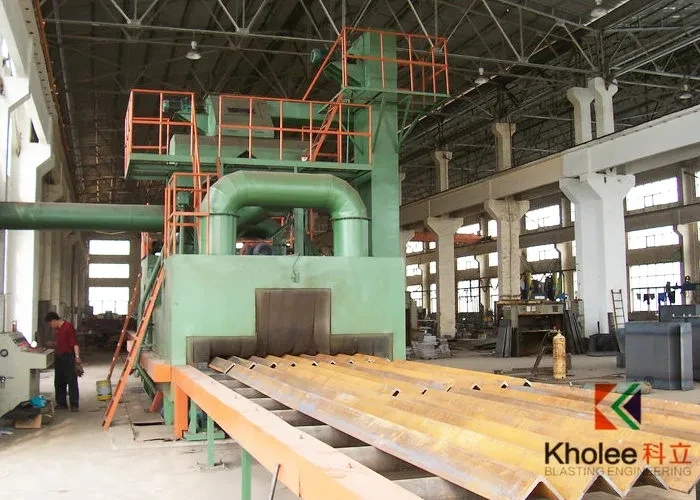

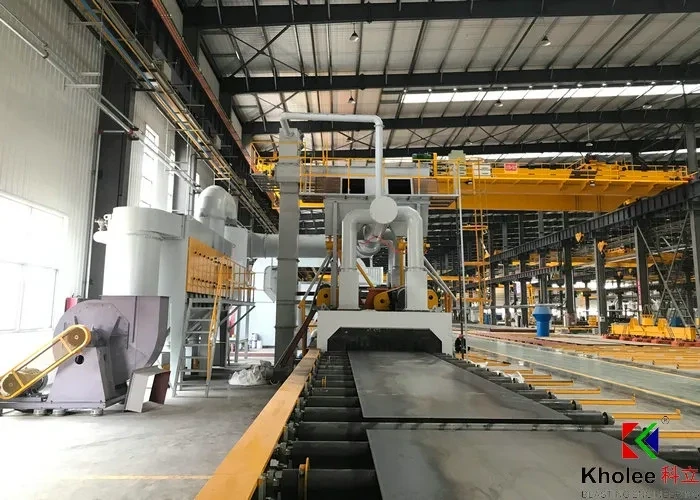

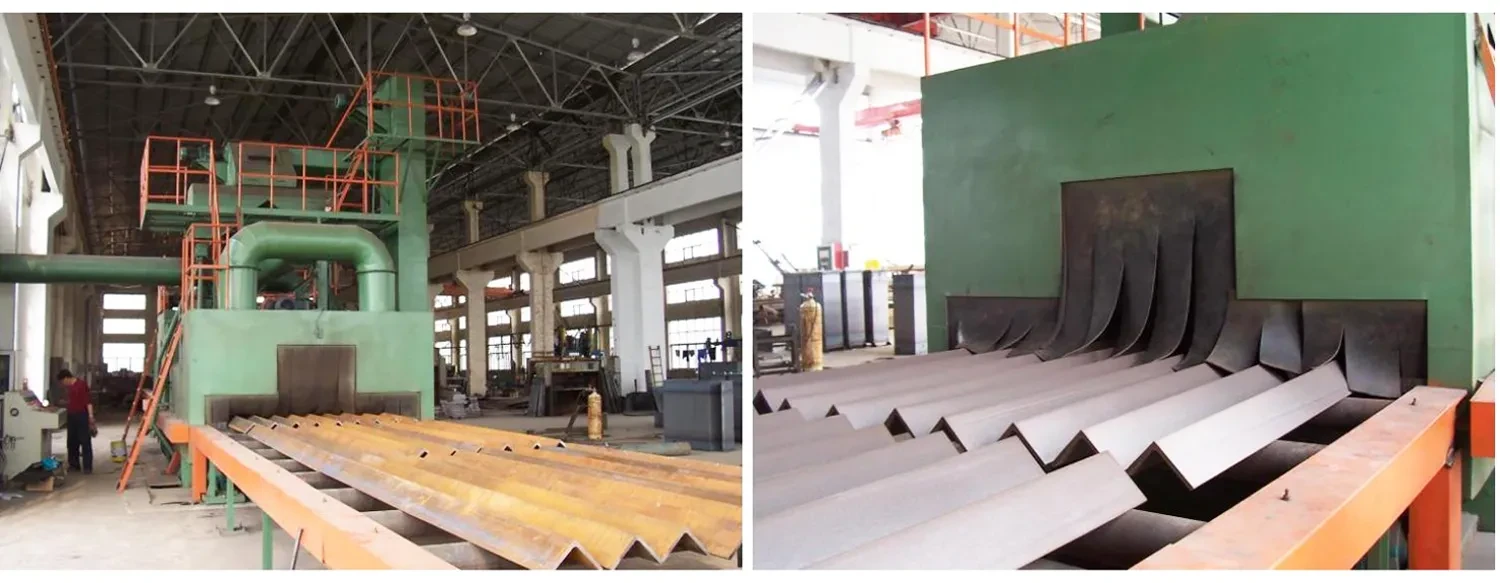

◆ Case Showcase
◆ Advantages
● High-efficiency cleaning: shot blasting machines can quickly remove rust, scale, and other impurities from steel plate surfaces, significantly improving cleaning efficiency and making them suitable for mass production.
● Uniform treatment: the shot blasting process is uniform, ensuring thorough cleaning of the steel plate surface and achieving consistent quality standards.
● Enhanced adhesion: after shot blasting, the steel plate surface develops a suitable roughness, enhancing the adhesion of subsequent coatings, paints, or anti-corrosion materials.
● Environmentally friendly and energy-saving: the equipment adopts a high-efficiency dust fume control system, reducing dust emission produced by blasting to maxium and avoiding the use of harmful chemicals to clean metal surface, meeting environmental standards.
● Automated control: The automated system adopts PLC automatic control , reduces manual intervention, improves production efficiency, and ensures consistent cleaning results.
◆ Industry
◆ FAQ
Q: How do I know if your shot blasting machine is suitable for my products?
A: To ensure we recommend the most effective solution, please provide the following details about your application. The more information you share, the more accurate our proposal will be.
Q: What kind of products do you need to do blasting?
A: Steel Plate, steel structures, pipes, automotive parts, forged gears, structural steel, precision castings, sand casting etc
Q: Primary Purpose: What is the main goal of shot blasting?
A: Surface Cleaning: Remove rust, mill scale, oxide layers, old paint, or welding slag
Surface Preparation: coating, plating, or painting adhesion.
Deburring/Deflashing: Remove burrs from machined or stamped parts, aluminium parts .
Descaling: Remove heat-treated scale or casting sand, investment casting shell.
Peening: Improve fatigue strength (stress relief).
Aesthetic Finishing: Create a uniform matte or textured surface.
Q: What is your products Specifications
A: Maximum Workpiece: Length x Width x Height and Weight
Minimum Workpiece: Length x Width x Height and Weight
Typical Batch Size/Throughput: How many parts do you process per hour or per shift?
Q: Performance & Requirements
Q: Required Cleaning Efficiency (e.g., Sa 2.5, or describe the desired cleanliness)
Q: Current Production Method: How are you currently cleaning or preparing these surfaces?
Q: Future Considerations: Do you anticipate changes in product size or volume?
