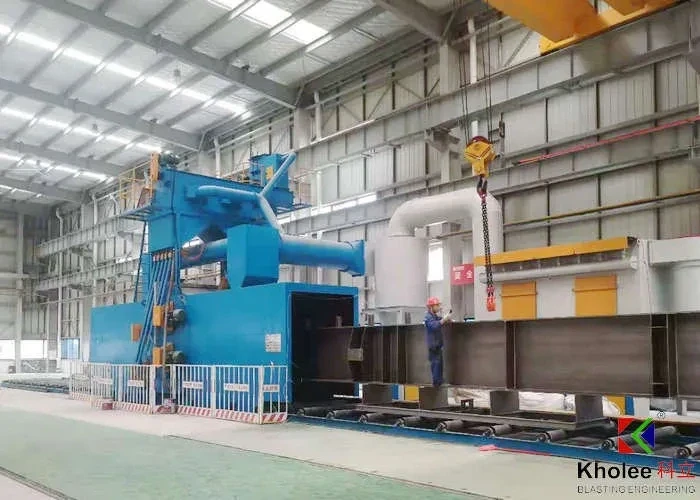

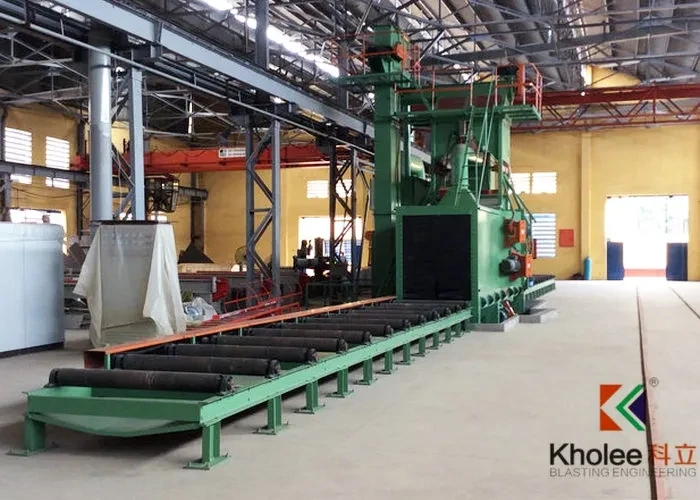

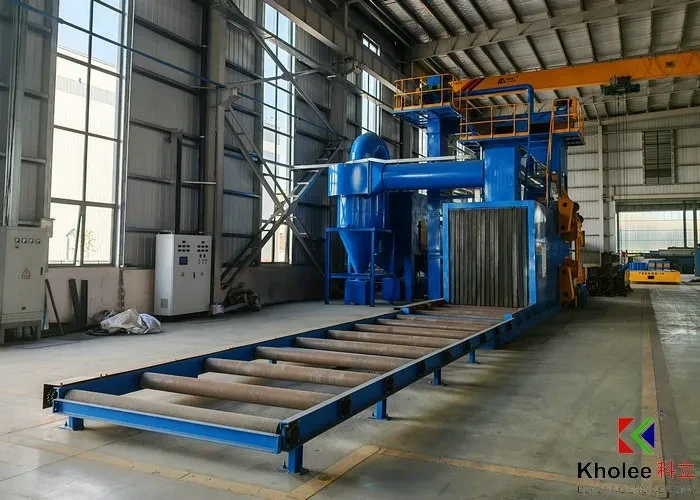

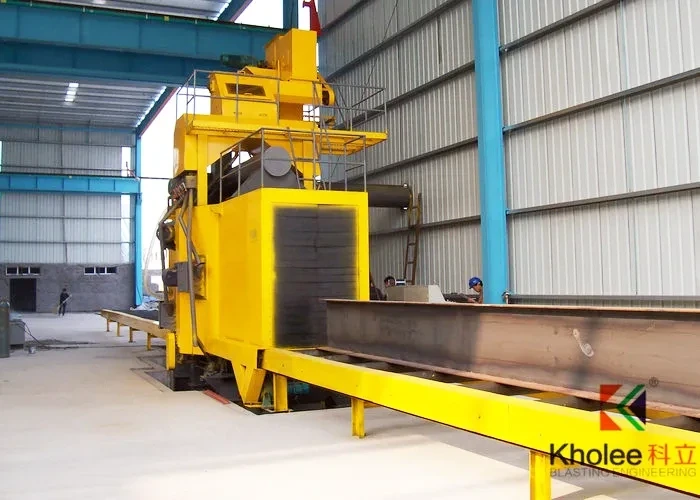

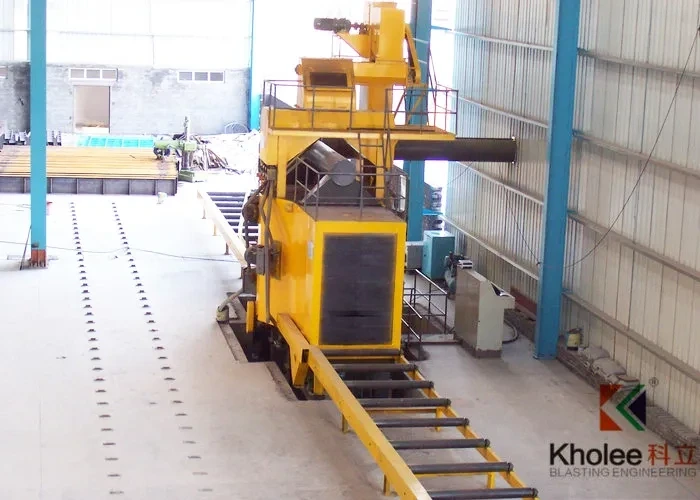

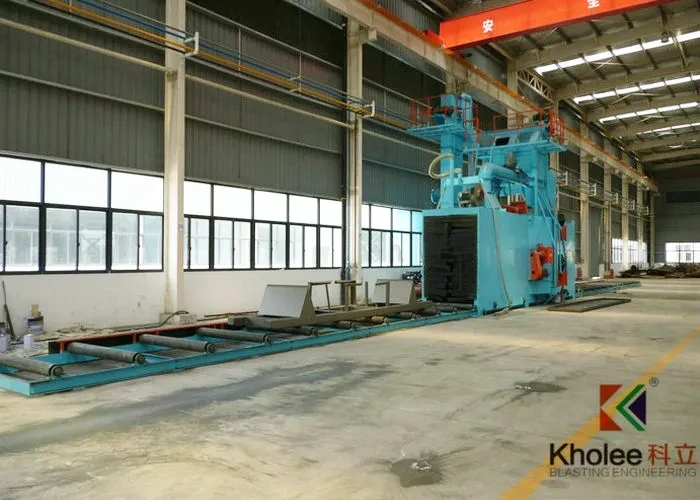

The Equipment comprises several key systems: in-feeding roller conveyor, shot blasting chamber with Mn 13 protection Liner, blast wheels, abrasive recycling system, dust and fume control system, out-feeding roller conveyor, and integrated PLC electrical control system.
◆ Application
Steel structure fabrication | PEB Fabrication | Engineering Machinery | Pressure Vessel Machinery | Bridge Construction | Shipbuilding
◆ Specifications
| Model | KLH2025-12 Steel Structure Shot Blasting Machine |
| Products Size | 2000 × 2500 × 15000mm |
| Working Speed | 0.5~2.5m/min |
| Roller Conveyor | 1500kg/m
15000mm × 2 |
| Blasting Wheel | 250kg/min × 12, 15kw × 12 |
| Abrasive Recycle System | 1# Portrait Screw Conveyor 180 t/hr -7.5kw
2# Portrait Screw Conveyor 180t/hr -5.5kw
Transverse Screw Conveyor 180t/hr - 7.5kw
Bucket Elevator 180t/hr - 15kw
Air Wash Type Separator 180t/hr-7.5kw |

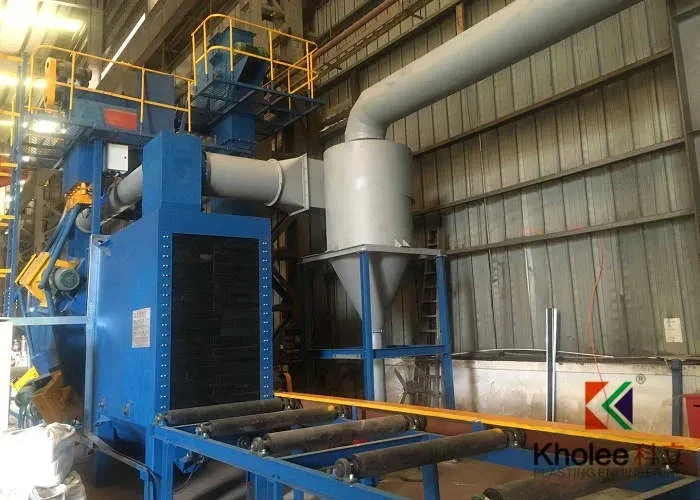

| Dust Fume Control System | Cyclone Dust Collector Φ1500mm
KL-DC-40 Pulse Jet Dust Collector
Air Fan 38500m3/hr / 37kw
Dust Emission ≤30mg/m3 |
| Electrical Control System | 380V~440V/50Hz~60Hz/3Ph
Manual control + Auto
Equipped with Famous Brand Elements Such as Schneider, China etc
PLC Auto Control, air breaker, contactor,
time relay, thermal relay, button, switch etc. |
| Surface Quality After Blasting | Sa 2.5 GB8923-88(ISO8501) |
| Roughness After Blasting | Ra20~75 |
| Noise Level | ≤85dB |
| Size of Equipment | 42,000×5,000×8,000mm |
| Total Power | ~ 262.5 kw |
◆ Advantages

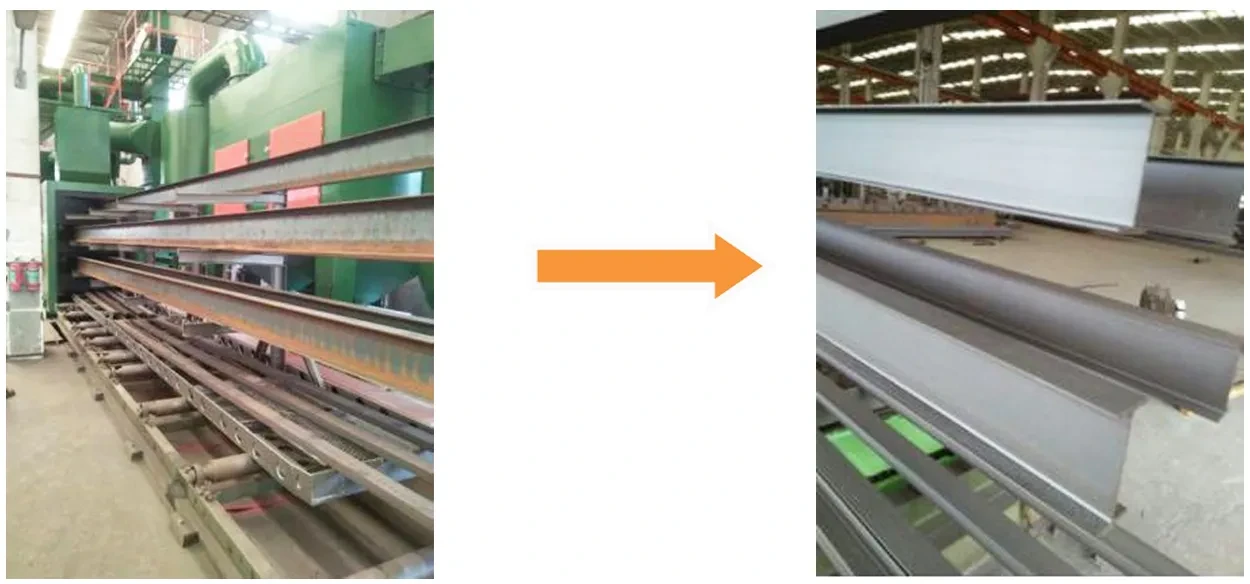

Highly Efficient Cleaning: Steel structure shot blasting machines can quickly remove rust, scale, oxide layers and welding slag from steel structure surfaces, improving cleaning efficiency and meeting the needs of large-scale production.
Enhanced Adhesion: During shot blasting, a uniform roughness is produced by shot blasting on the steel structure surface, enhancing the adhesion of subsequent coatings and ensuring a stronger bond for anti-corrosion paint.
Improved Durability: Shot blasting improves the stress distribution on the steel structure surface, enhancing corrosion resistance and fatigue resistance, effectively extending the service life of the steel structure and reducing maintenance costs.
Environmentally Friendly and Energy-Saving: Compared to traditional chemical cleaning methods, shot blasting do not use harmful chemicals, and the abrasive can be recycled, dust fume control system, reducing resource waste and environmental pollution.
Automated Operation: Utilizing an automated control system, manual intervention is reduced, improving production efficiency and the consistency of cleaning results, ensuring long-term stable operation.
◆ Industry
◆ FAQ
Q: How do I know if your shot blasting machine is suitable for my products?
A: To ensure we recommend the most effective solution, please provide the following details about your application. The more information you share, the more accurate our proposal will be.
Q: What kind of products do you need to do blasting?
A: Steel Plate, steel structures, pipes, automotive parts, forged gears, structural steel, precision castings, sand casting etc
Q: Primary Purpose: What is the main goal of shot blasting?
A: Surface Cleaning: Remove rust, mill scale, oxide layers, old paint, or welding slag
Surface Preparation: coating, plating, or painting adhesion.
Deburring/Deflashing: Remove burrs from machined or stamped parts, aluminium parts .
Descaling: Remove heat-treated scale or casting sand, investment casting shell.
Peening: Improve fatigue strength (stress relief).
Aesthetic Finishing: Create a uniform matte or textured surface.
Q: What is your products Specifications?
A: Maximum Workpiece: Length x Width x Height and Weight
Minimum Workpiece: Length x Width x Height and Weight
Typical Batch Size/Throughput: How many parts do you process per hour or per shift?
