◆ Specifications

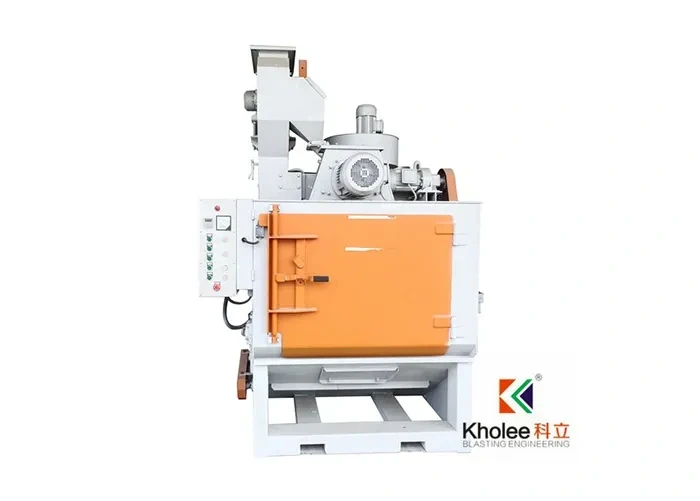

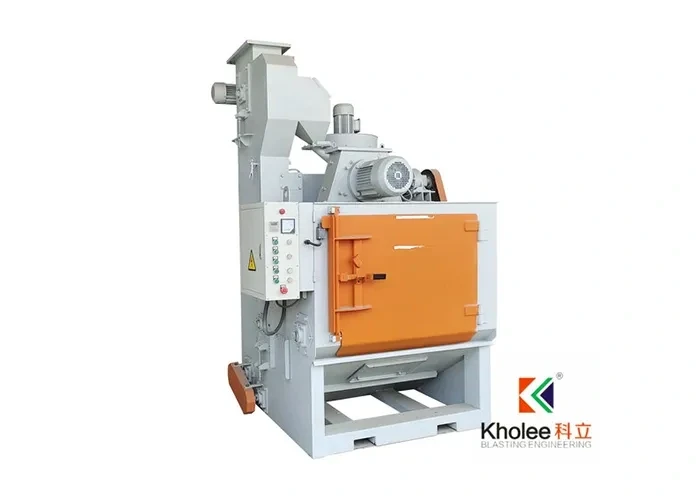

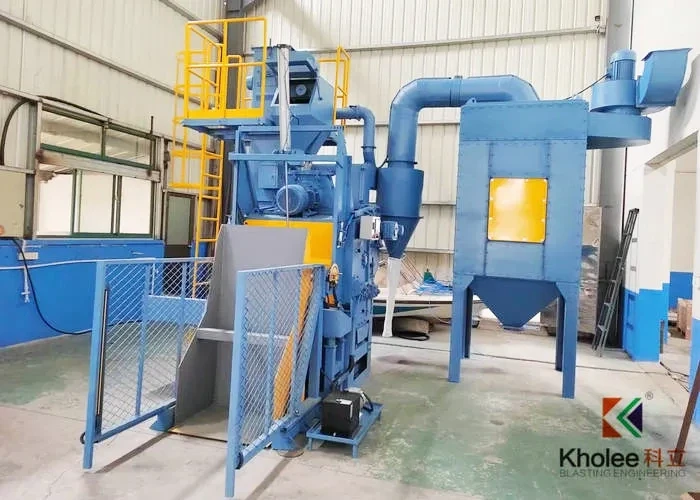

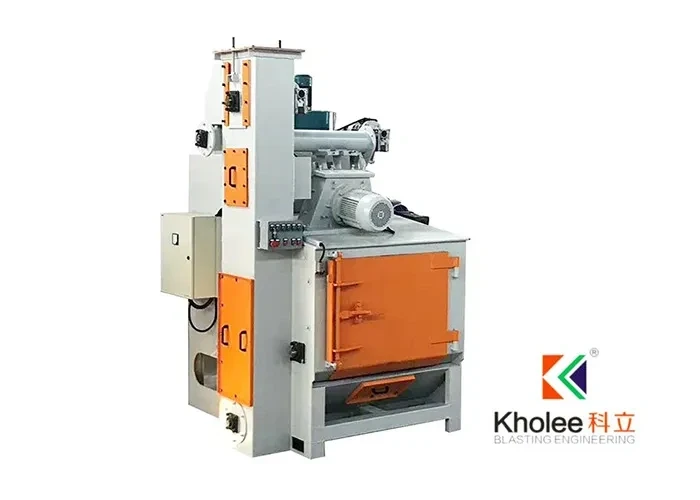

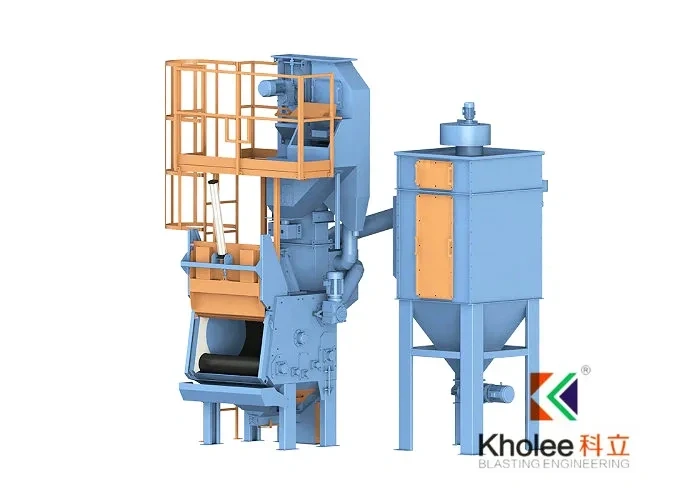

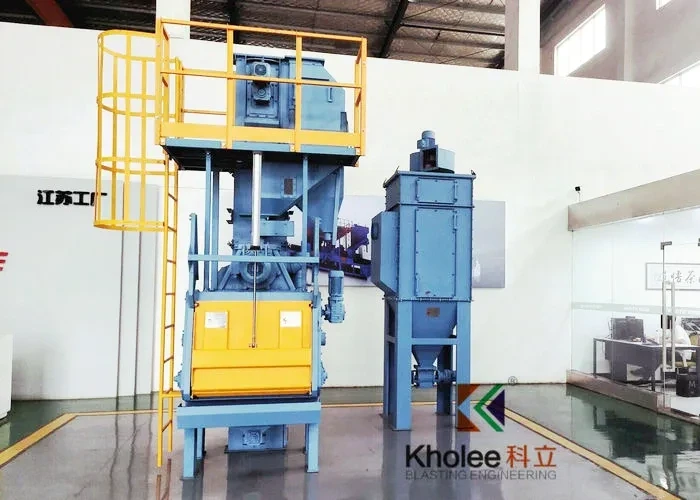

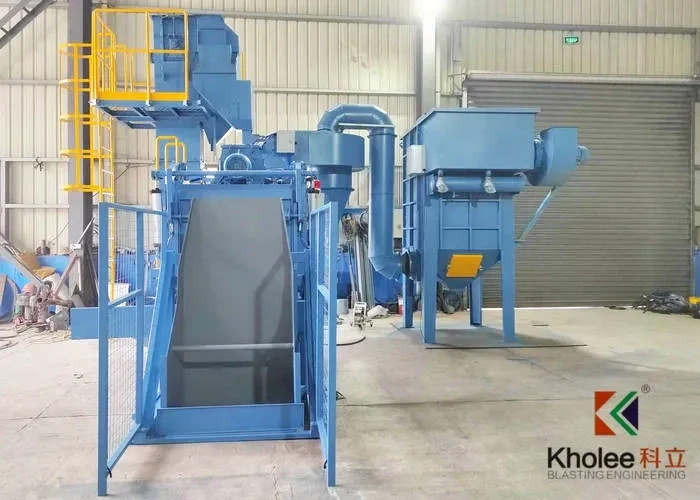

| TUMBLE BELT SHOT BLASTING MACHINE |
| Model | KLQ324 | KLQ326 | KLQ3210 | KLQ3210A-1 | KLQ3212A-2 |
| Productivity(t/h) | 0.2~0.5 | 0.6~1.2 | 3~5 | 3~5 | 8~10 |
| Max Loading(kg) | 100 | 200 | 600 | 600 | 1000 |
| Max weight per (kg) | 10 | 10 | 30 | 30 | 30 |
| Diameter of Tumble Belt(mm) | φ400 | φ650 | φ1000 | φ1000 | Φ1200 |
| Volume of Tumble Belt(cbm) | 0.07 | 0.15 | 0.4 | 0.4 | 0.5 |
| Blasting Volume (kg/min) | 90 | 150 | 200 | 250 | 250×2 |
| Auto Loading Power(kw) | / | / | / | 3 | 5.5
|
◆ Advantages
● High-efficiency cleaning: The roller conveyor system enables shot peening machines to quickly and evenly remove impurities from workpiece surfaces, improving cleaning efficiency and making them suitable for mass production.
● Uniform treatment: The rotation of the roller conveyor ensures that every surface of the workpiece receives uniform blasting, guaranteeing consistent cleaning results and making it suitable for processing workpieces with complex shapes.
● Energy saving and environmental protection: The abrasive can be reused, reducing resource waste and eliminating reliance on chemical cleaning agents, meeting environmental standards and lowering operating costs.
● Improved adhesion: The uniform surface roughness after shot peening promotes the adhesion of coatings, paints, and anti-corrosion materials, enhancing the durability of the workpiece.
● Automated operation: The equipment's automated control system simplifies the operation process, improves production efficiency, and ensures the stability of the cleaning effect.
◆ Industry
◆ FAQ
What types of workpieces are suitable for a tumble belt shot blasting machine?
Tumble belt shot blasting machines are suitable for various metal workpieces, especially small or medium-sized batch production of automotive parts, mechanical parts, castings, and forgings. They are suitable for workpieces of different shapes and materials.
How to improve the working efficiency of a tumble belt shot blasting machine?
The key to improving efficiency lies in properly adjusting the spraying speed and abrasive particle size to ensure uniform spraying and no abrasive waste. In addition, regularly check the equipment and abrasive quality to ensure a highly efficient and stable shot blasting process.
What safety precautions should be taken when using a tumble belt shot blasting machine?
Wear protective glasses, earmuffs, and a dust mask during operation to avoid abrasive splashing. Regularly check the equipment's electrical system, spraying device, and abrasive to ensure safe and stable operation.
