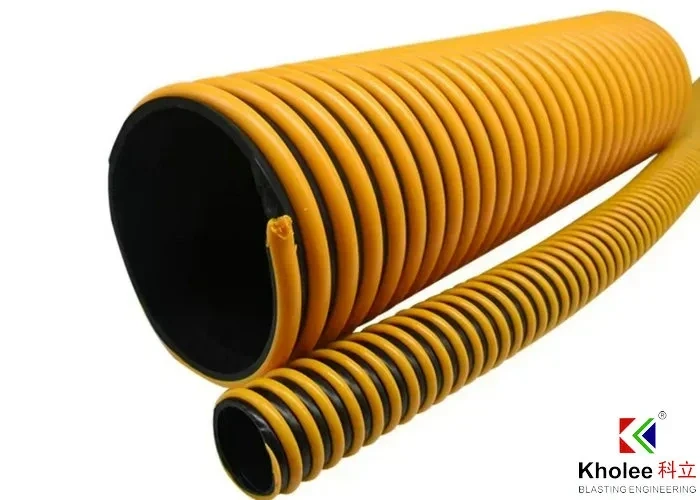

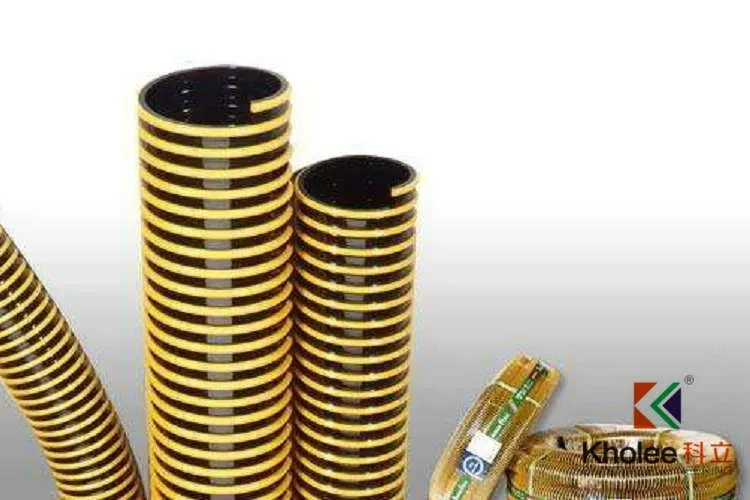

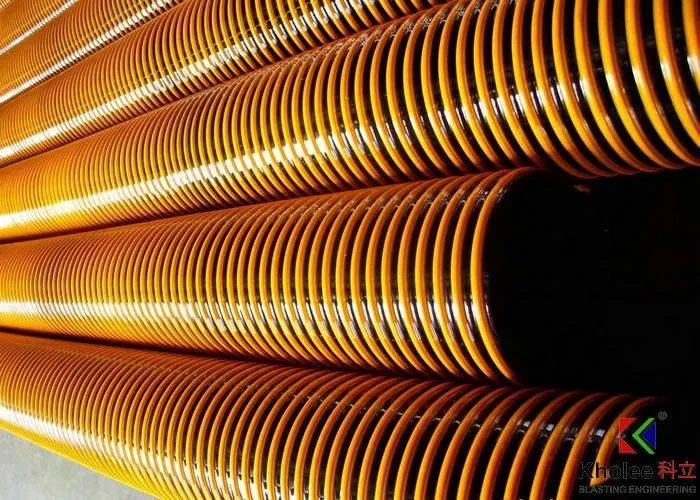

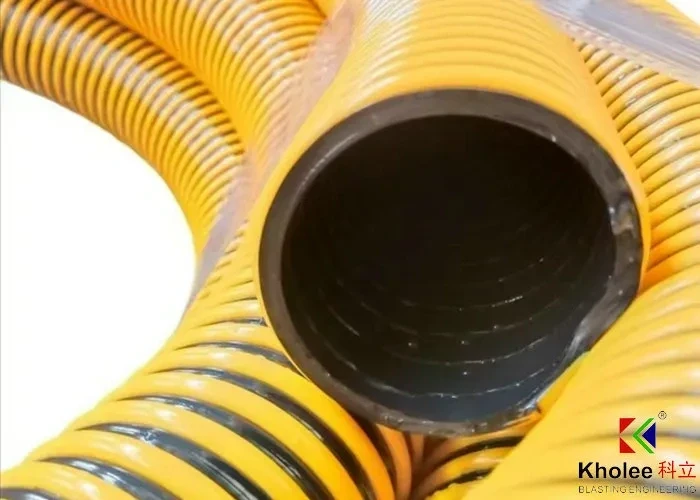

PVC Grit Hose is a flexible grit hose with protective yellow spiral is best suited for heavy dust control and sands material handling. Each material transfer duct is constructed using a special mixed materials with a rigid PVC spiral. This grit hose material is made to withstand abrasive conditions. The exterior yellow spiral protects the hose from exterior wear and tear from prolonged use.
■ The Steel Shot / Grit Hose Mainly used in main line for heavy suction of abrasives
■ Excellent anti abrasion property
■ Sizes available: 2”×30m, 3”×30m, 4”×20m/30m, 5”×20m, 6”×20m
| ID | OD
(mm) | Bending Radius
(mm) | Working Pressure
(Bar) | Weight
(kg/m) |
| 2” / 50mm | 66 | 450 | 6 | 1.3 |
| 2-1/2” / 65mm | 81 | 550 | 5.5 | 1.7 |
| 3” / 75mm | 97 | 750 | 5.5 | 2.2 |
| 4” / 100mm | 128 | 1250 | 5 | 4.2 |
| 5” / 125mm | 156 | 1500 | 4.5 | 5.6 |
| 6” / 150mm | 187 | 2000 | 4 | 7.2 |
◆ Industry
To recovery steel shots, grits and garnet after blasting and widely used in the industry of shipbuilding, ship repair, big tank internal blasting etc.
◆ FAQ
What size of grit hose do you need to buy?
Sizes available: 2”×30m, 3”×30m, 4”×20m/30m, 5”×20m, 6”×20m
What working pressure does the grit hose used for vacuum recovery
- 0.06Mpa
