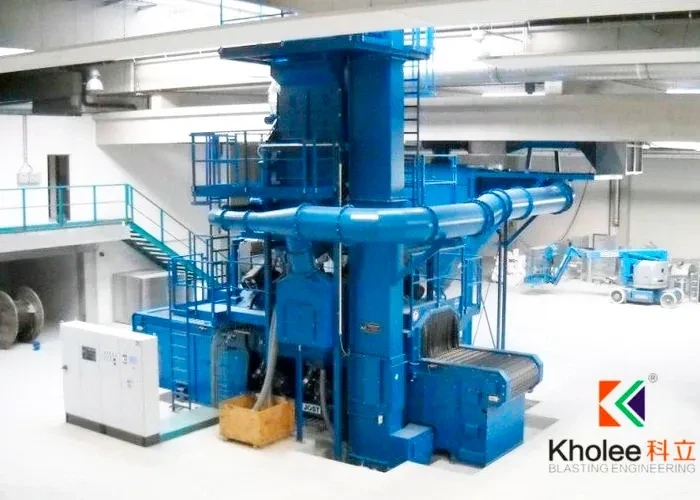

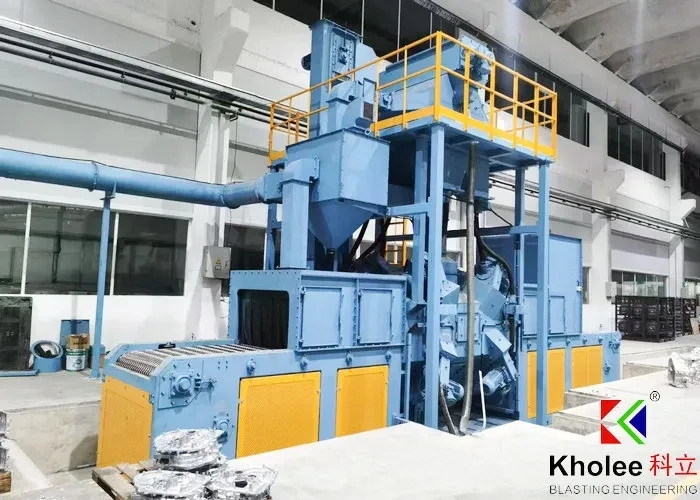

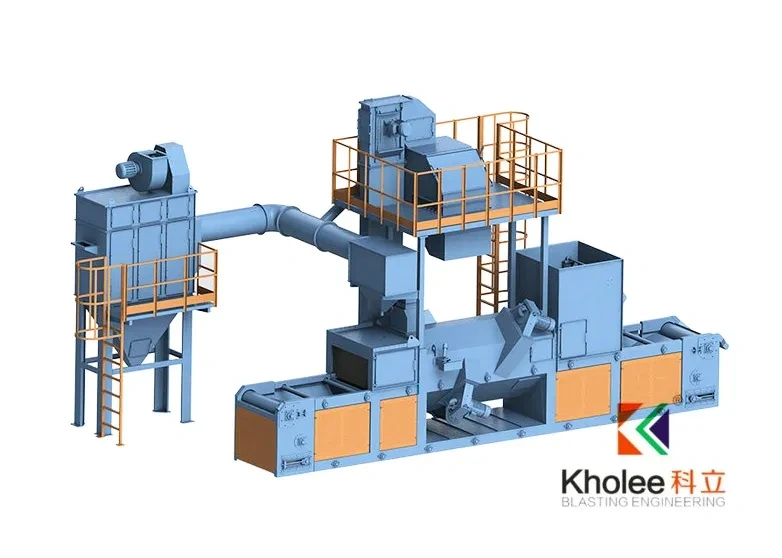

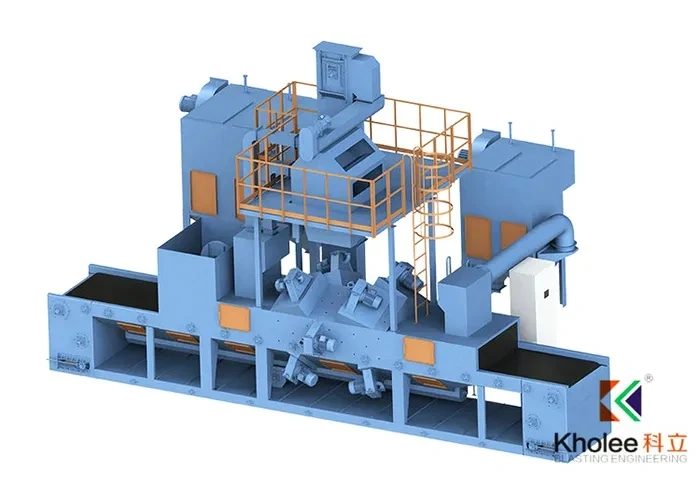

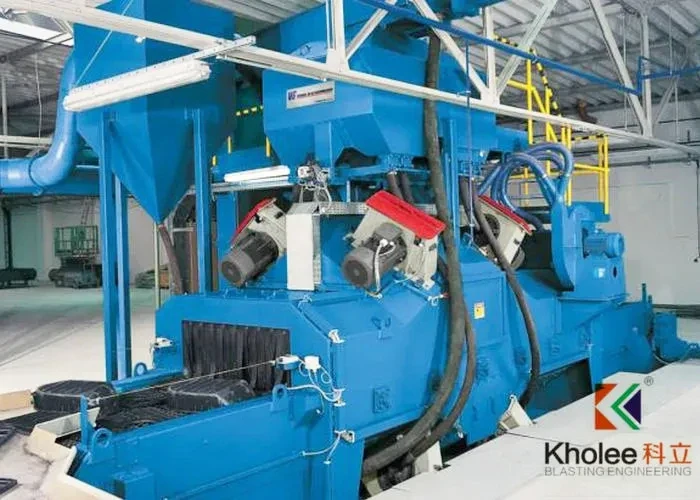

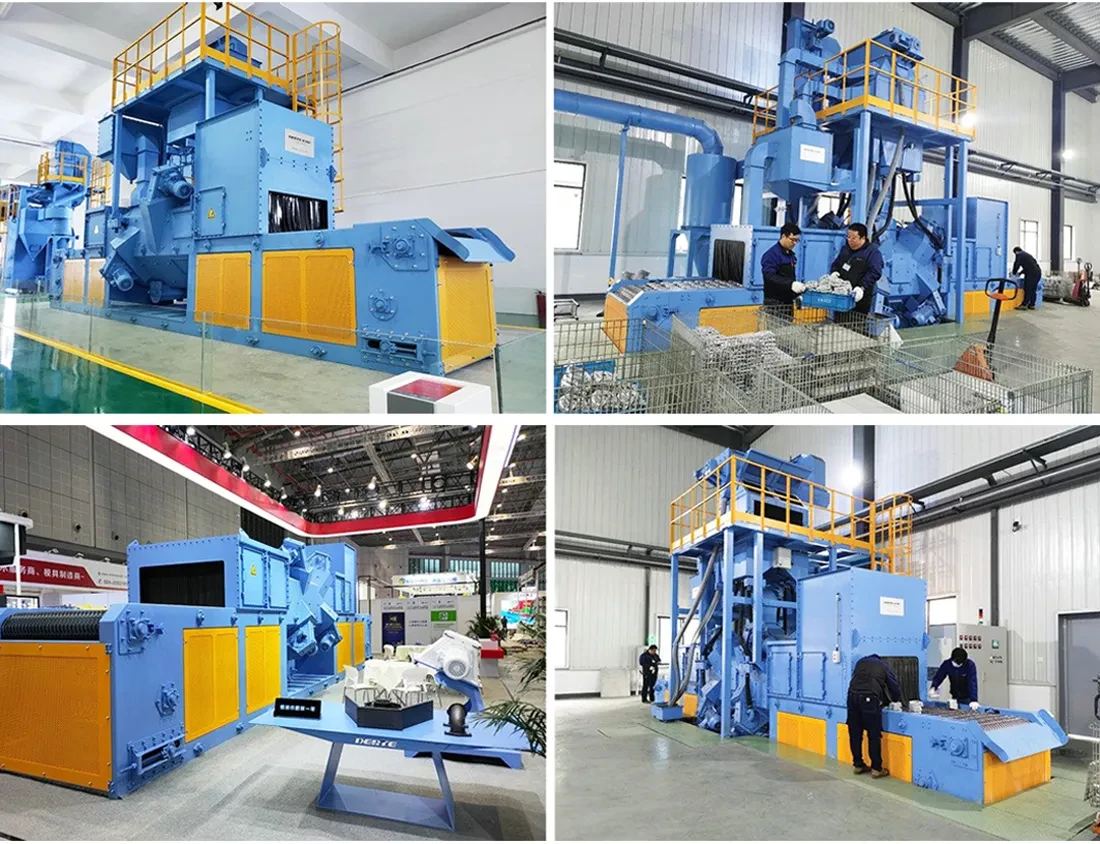

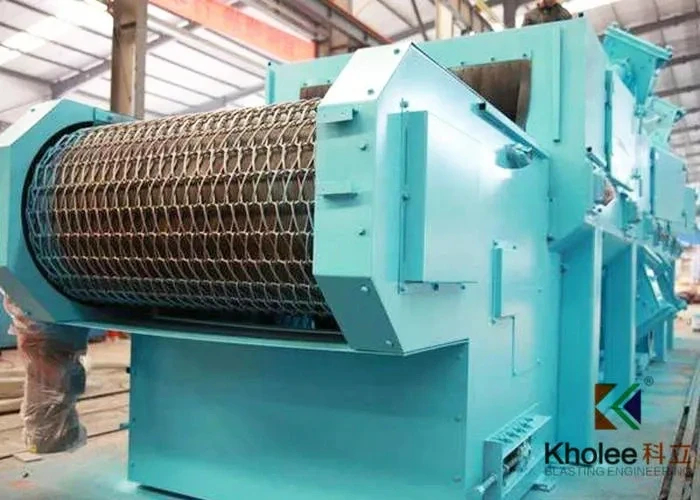

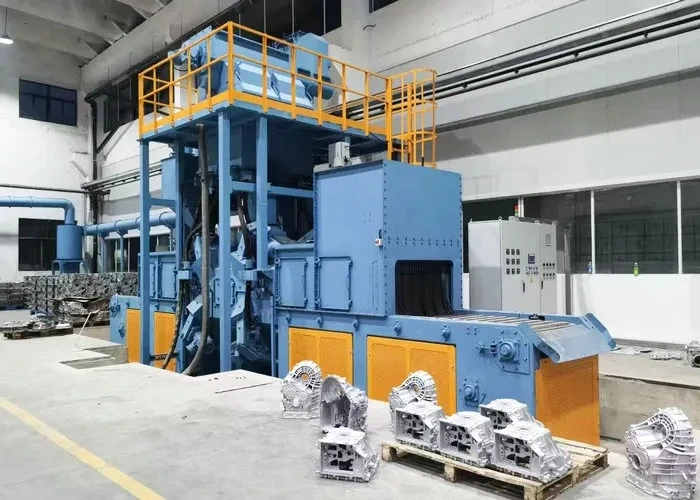

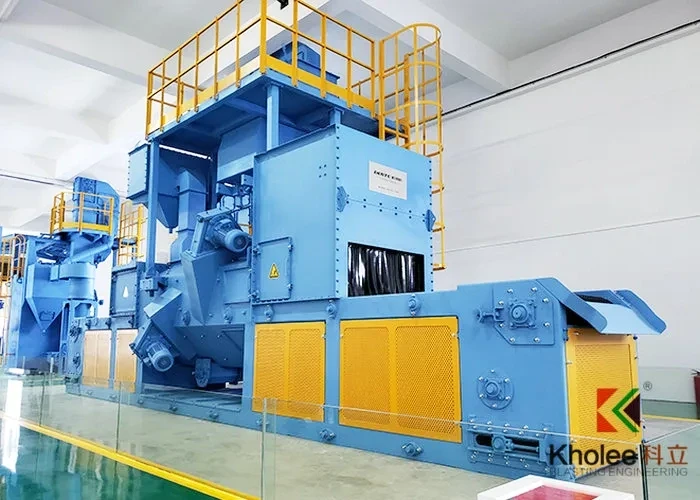

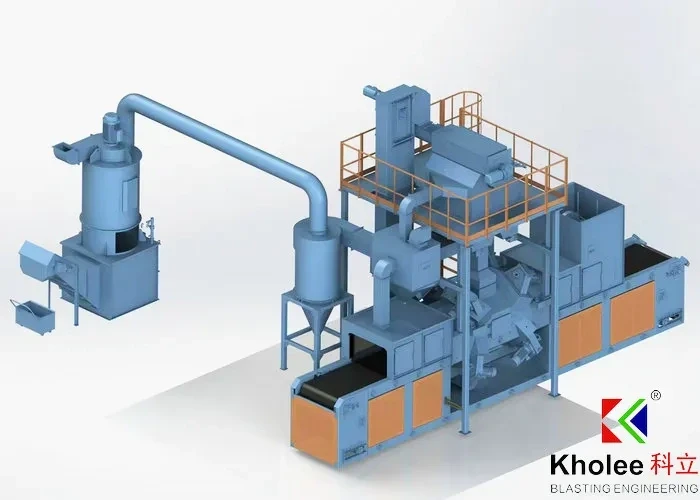

The equipment is comprised of stainless wire mesh conveyor, shot blasting chamber, blasting turbine, shots recycle system, shots clean off system, dust removing system, out-feeding roller conveyor and electrical control system etc.
◆ Specifications
| WIRE MESH BELT SHOT BLASTING MACHINE |
| Model | KLWD1100-4 | KLWD1300-8 |
| Open Size of Chamber(W×H) | 1150×550mm | 1350×550mm |
| Size of Products (W×H) | 600×350mm | 900×350mm |
| Wire Mesh Belt Width | 1100mm | 1300mm |
| Max Products Weight | 100kg/m | 100kg/m |
| Wire Mesh Size | 60×100mm | 60×100mm |
| Working Speed | 0.2~1.2m/min | 0.8~2.5m/min |
| Blasting Wheel | 11kw×4 | 11kw×8 |
| Shots Flow | 180kg/min×4 | 180kg/min×8 |
| Abrasive Recycle System | 48t/hr | 96t/hr |
| Initial Shots Input | 1600kg | 3800kg |
| Working Height of Belt | 650mm | 680mm |
| Dust Air Volume | 7260m³/hr | 15000m³/hr |
| Total Power | 71kw | 142kw |
| WIRE MESH BELT SHOT BLASTING MACHINE |
| Model | KLWD1400-8 | KLWD1500-10 |
| Open Size of Chamber(W×H) | 1450×550mm | 1550×550mm |
| Size of Products(W×H) | 1000×350mm | 1100×350mm |
| Wire Mesh Belt Width | 1400mm | 1500mm |
| Max Products Weight | 100kg/m | 100kg/m |
| Wire Mesh Size | 60×100mm | 60×100mm |
| Working Speed | 0.8~2.5m/min | 0.8~2.5m/min |
| Blasting Wheel | 11kw×8 | 7.5kw×10 |
| Shots Flow | 180kg/min×8 | 110kg/min×10 |
| Abrasive Recycle System | 48t/hr | 70 t/hr |
| Initial Shots Input | 3800kg | 3000kg |
| Working Height of Belt | 700mm | 720mm |
| Dust Air Volume | 15000m³/hr | 15000m³/hr |
| Total Power | 142kw | 132kw |
◆ Advantages
High-efficiency cleaning: Steel mesh belt shot peening machines can quickly remove oxide scale, rust, and other impurities from metal surfaces, suitable for mass production and significantly improving surface cleaning efficiency.

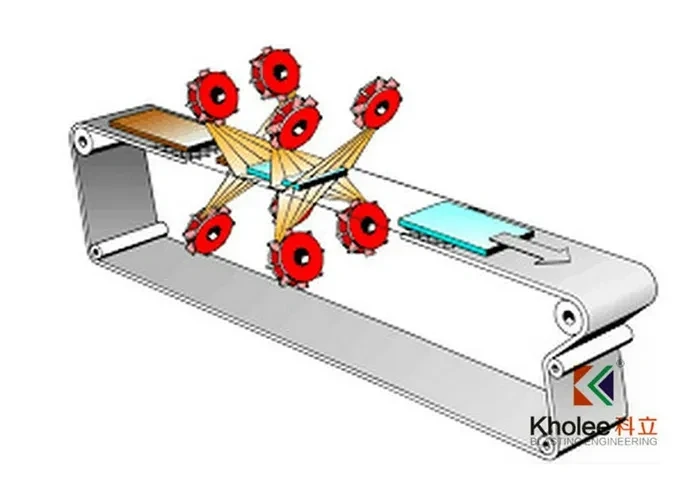

Uniform blasting: The steel mesh belt conveyor system ensures that the workpiece receives uniform abrasive impact during shot peening, achieving a consistent cleaning effect.
Enhanced adhesion: Shot peening creates a uniform roughness on the workpiece surface, thereby improving the adhesion of coatings, paints, or anti-corrosion layers and extending the service life of the workpiece.
Energy saving and environmental protection: This equipment uses a high-efficiency blasting system that makes full use of abrasive, reduces resource waste, and does not use harmful chemicals, meeting environmental protection requirements.
Automated control: The equipment is equipped with an automated control system, reducing manual operation and ensuring stable working efficiency and high-precision surface cleaning results.
◆ Industry
◆ FAQ
What workpieces are suitable for steel mesh belt shot peening machines?
Steel mesh belt shot peening machines are suitable for various metal workpieces, especially mass-produced automotive parts, mechanical parts, steel plates, castings, etc. The equipment can adjust speed and blasting intensity to adapt to the processing needs of workpieces of different sizes and materials.
What safety precautions should be taken when using a steel mesh belt shot peening machine?
During operation, personnel should wear protective glasses, earmuffs, and dust masks to avoid injury from abrasive splashes. In addition, regularly check the equipment's electrical system and conveyor belt to ensure safe and stable operation.
How to improve the working efficiency of a steel mesh belt shot peening machine?
Methods to improve efficiency include regular equipment maintenance, keeping the shot peening system clean, and properly adjusting the workpiece conveyor speed to ensure that each workpiece is evenly peened, improving cleaning effectiveness and reducing waste.
